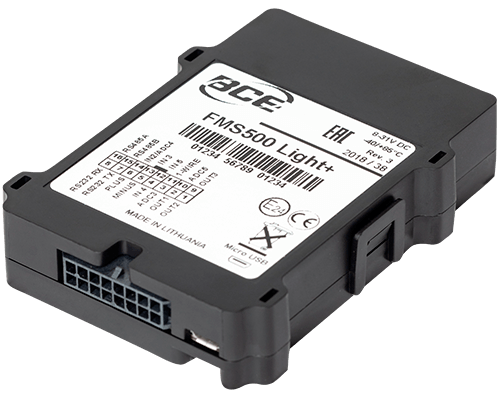

BCE FMS500 Light+ MQTT (IOTM)

BCE FMS500 Light+ is advanced vehicle tracker with ignition monitoring, output control and jamming detection feature. BCE FMS500 Light+ is able to help you in driving quality monitoring by using car crash detections and Eco driving. Device works in 8-31 V voltage range, supports RS-232 RS-485 and 1 wire interfaces. BCE FMS500 Light + is the device with discrete / analog / impulse / frequency sensors connectivity and CAN interface connectivity. Also BCE FMS500 Light+ tracker supports LBS and A-GPS technologies and has overvoltage protection.

Mostrar más

This tracker uses MQTT protocol for data transferring.

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking modes
  • LBS support

Mobile networks

  • 2G Network

Power supply

  • Build-in battery 700mAh (optional)
  • External power supply (8 – 31V)

Inputs and outputs

  • 4 Digital inputs
  • 3 Analog inputs
  • 3 Digital outputs

Other features

  • Eco driving
  • Car crash detection
  • Internal antennas
  • GSM jamming detection
  • 1-Wire/RS-232/RS-485 Interfaces
  • External CAN interface

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor1883

Información general

FinalidadVehículo

Conectividad

Estado de roaming
Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales8
Número de salidas3
Sensor analógico
Sensor de frecuencia
Active un dispositivo en la plataforma Probar
