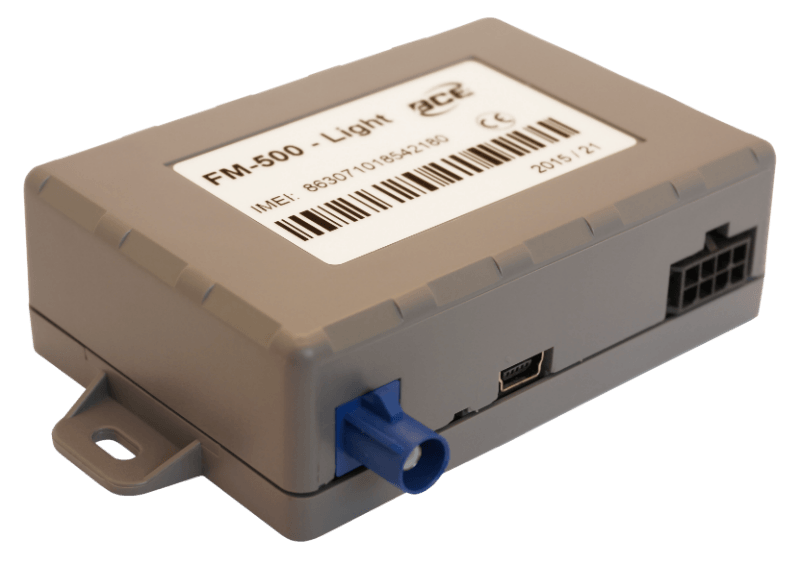

BCE FM-500 Light+

BCE FM-500 Light+ is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability.

Mostrar más

Package contents

BCE FM-500 Light+ package content includes:

  • BCE FM-500 Light+ device
  • External GPS antenna
  • Wires + 1A Fuse

Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.

Location and tracking

FM-500 Light+ model is embedded with GPS chip and it supports GLONASS as well. It also supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module BCE FM-500 Light+ can operate all over the world where 2G networks are supported.

 Features

BCE FM-500 Light+ model features all functions of BCE FM-500 Light device (as well as 1-Wire (iButton)), but also it has few additions:

  • RS-232
  • EIA-485

It allows users/dealers to adjust the device to meet their specific requirements.

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

BCE FM-500 Light+ can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also, you can configure and manage the device via the manufacturer’s software «BCE configurator».

LED Indication

BCE FM-500 Light+ has one LED for GSM/GPS status.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47727
Integrado19/03/2015

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso73 g (2.58 oz.)
Tamaño26x80x55 mm (1.02x3.15x2.17 in)

Localización GNSS

Antena interna (GNSS)No
Antena externa (GNSS)
GPS
GLONASS
GPS asistido

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de salidas3
Número de entradas (todos tipos)6
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz RS232
Interfaz RS485
Interfaz 1-Wire
Salidas
Soportado

Hardware extras

Lectura del sensor del nivel de combustible
Soportado
Lectura del identificador del conductor
Soportado

Características de rastreo

Modos de rastreoContinuo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado

Monitoreo de eventos

Poca batería
Soportado
Dispositivo on/off
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Voltaje de alimentación externa
Soportado

Administración remota

La conexión con servidor por SMS
Soportado

Certificacón

CE
FCC
EAC
