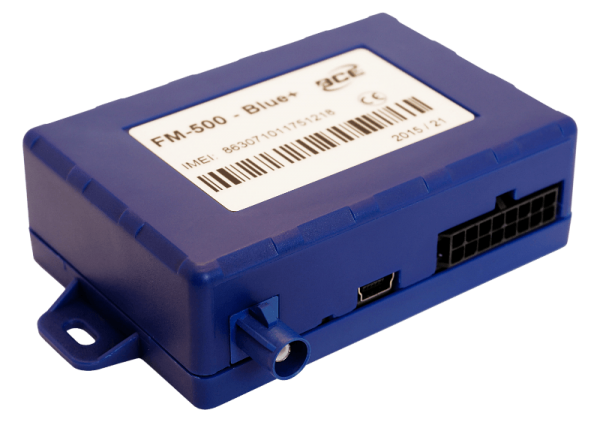

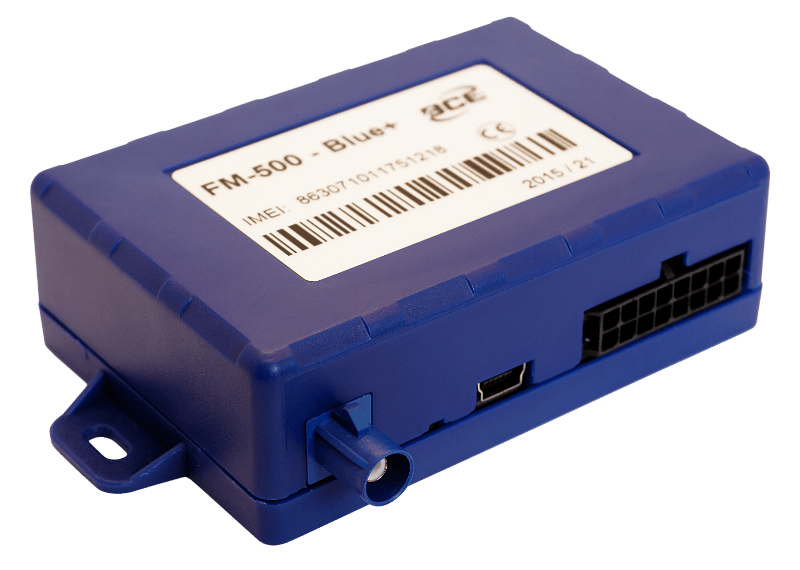

BCE FM-500 Blue+

BCE FM-500 Blue+  is a vehicle tracking and controlling device with multiple functions. In addition to all FM-500 Blue functions, it has 1-Wire, RS-232 and EIA-485 interfaces, which allow users to adjust the device to meet their specific requirements.

Mostrar más

It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability

Package contents

BCE FM-500 Blue+ package content includes:

  • BCE FM-500 Blue+ device
  • External GPS antenna
  • Wires + 1A Fuse

Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.

Location and tracking

FM-500 Blue+ model is embedded with GPS chip and it supports GLONASS as well. It also supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module BCE FM-500 Blue+ can operate all over the world where 2G networks are supported.

 Features

BCE FM-500 Blue+ model features:

Interfaces

  • FMS CAN (protocol J1939)
  • OBDII (diagnostic protocol of light vehicles, SAE-1979 w/o adapters)
  • CAN protocols of light vehicles (without adapters)
  • 1-Wire (iButton)
  • RS-232
  • EIA-485
  • FM-500 Blue+ also supports J1708 protocol without any adapters which is mainly used for Volvo/ Renault trucks and some other heavy machinery

Inputs and outputs

  • 4x digital inputs (frequency, impulse counter, ON/OFF modes)
  • 3x analogue inputs, 11 bit, 0-36V
  • 3x digital outputs

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

BCE FM-500 Blue+ can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also, you can configure and manage the device via the manufacturer’s software «BCE configurator».

LED Indication

BCE FM-500 Blue+ has one LED for GSM/GPS status.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47727
Integrado19/03/2015

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso73 g (2.58 oz.)
Tamaño26x80x55 mm (1.02x3.15x2.17 in)

Localización GNSS

Antena interna (GNSS)No
Antena externa (GNSS)
GPS
GLONASS
GPS asistido

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de salidas3
Número de entradas (todos tipos)7
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz RS232
Interfaz RS485
Interfaz 1-Wire
Salidas
Soportado

Hardware extras

Lectura del sensor del nivel de combustible
Soportado
Lectura del identificador del conductor
Soportado

Características de rastreo

Modos de rastreoContinuo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado

Monitoreo de eventos

Poca batería
Soportado
Dispositivo on/off
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Voltaje de alimentación externa
Soportado

Leyendo CAN/OBDII

Tipo de lector CAN/OBDII
Soportado
Axle load
Soportado

Administración remota

La conexión con servidor por SMS
Soportado

Certificacón

CE
FCC
EAC
