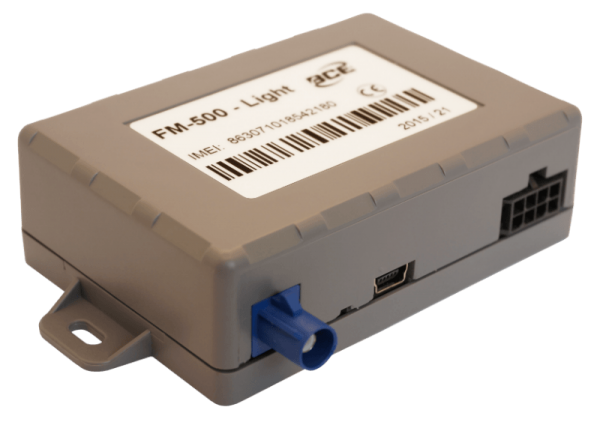

BCE FM-500 Light

BCE FM-500 Light  is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability.

Mostrar más

Package contents

BCE FM-500 Light package content includes:

  • BCE FM-500 Light device
  • External GPS antenna
  • Wires + 1A Fuse

Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.

Location and tracking

FM-500 Light model is embedded with GPS chip and it supports GLONASS as well. It also supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Features

BCE FM-500 Light features

  • 4x digital inputs (frequency, impulse counter, ON/OFF modes)
  • 2x analogue inputs, 11 bit, 0-36V
  • 3x digital outputs
  • 1-Wire (iButton) functionality

Mobile networks

With a Quad-band GSM module BCE FM-500 Light can operate all over the world where 2G networks are supported.

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

BCE FM-500 Light can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also, you can configure and manage the device via the manufacturer’s software «BCE configurator».

LED Indication

BCE FM-500 Light has one LED for GSM/GPS status.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47727
Auto registro

Información general

FinalidadVehículo
Peso73 g (2.58 oz.)

Conectividad

Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales8
Número de salidas2
Sensor analógico
Sensor de frecuencia
