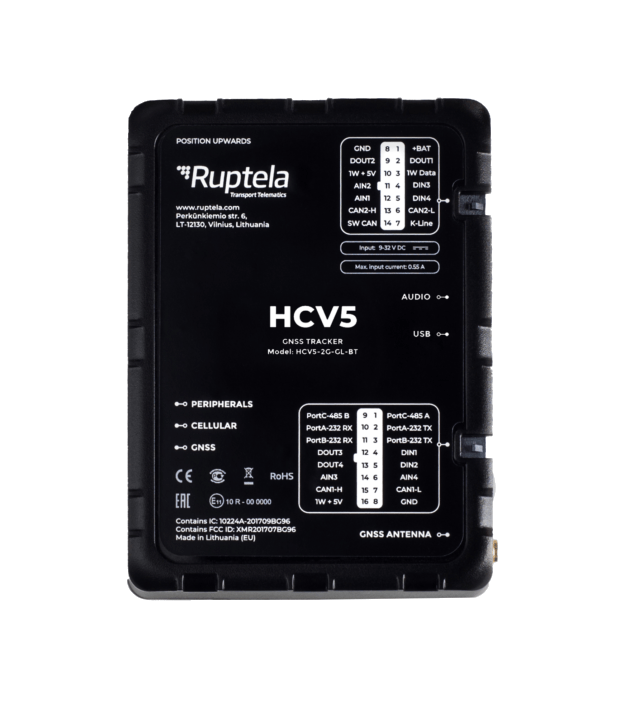

Ruptela HCV5

Ruptela HCV5 is designed for vehicle tracking and can do more than just read the vehicle’s onboard computer (CAN), monitor driver behavior, manage fuel management, etc. The device is available in variations using GSM (2G), UMTS (3G) and LTE Cat M1/NB-IoT (4G) networks and Bluetooth for communication. The NB-IoT network is included in the LTE Cat M1 variation.

Location and tracking

• GPS, GLONASS
• Continuous tracking mode

Mobile networks

• 2G version:
  Frequency bands @ 2G (GSM): 850/900/1800/1900 MHz

• 3G version with 2G fallback:
  Frequency bands  @ 2G (GSM): 850/900/1800/1900 MHz
  Frequency bands @ 3G (UMTS): 800/850/900/1900/2100 MHz

• LPWA version (CatM / NB-IoT) with 2G fallback:
  Frequency bands @ 2G (GSM): 850/900/1800/1900MHz
  Bands@ 4G (LTE Cat M1/NB-IoT): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

Power supply

• Build-in battery LiPo 3.7 V 1050 mAh
• External power supply 9 – 32 V DC

Protection

• Battery and a 1-Wire power line short circuit protection
• Reverse polarity protection
• Electrostatic discharge protection on USB, SIM card slot and 1-Wire data line
• Overcurrent protection on a 1-Wire power line and digital outputs
• Overvoltage protection on analog inputs
• Charging protection

Inputs and outputs

• 4 Digital inputs
• 4 Analog inputs
• 4 Digital outputs
• 2 RS232 (Transparent mode, Fuel level sensors, iQFreeze, RFID reader, Alcohol sensor, Fatigue sensor, Camera, etc…)
• 1 RS485
• 3xCAN interfaces (2xCAN and 1xK-Line interfaces for CAN bus reading)
• 1-wire interface (data and 5V power)

Other features

• Micro USB and 3x indications LEDs
• Accelerometer
• Jamming detection
• Driver registration and identification
• Real-time monitoring of fleets and cargo
• Remote tachograph solution
• Fleet efficiency optimization
• Driver behavior monitoring
• Driver, vehicle, and cargo safety and security
• Fuel monitoring
• Cargo conditions monitoring
• Trailer tracking
• Customizable with accessories
