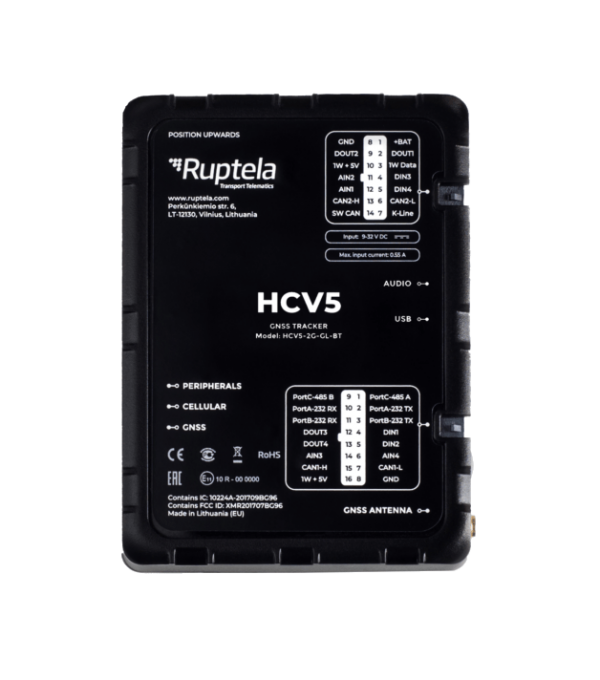

Ruptela HCV5

HCV5 is a professional GPS tracker for trucks, buses, agricultural, and other specialized equipment. It is designed to track vehicles and can perform advanced tasks - read on-board computer (CAN) data.

Show more

Ruptela HCV5 is designed for vehicle tracking and can do more than just read the vehicle’s onboard computer (CAN), monitor driver behavior, manage fuel management, etc. The device is available in variations using GSM (2G), UMTS (3G) and LTE Cat M1/NB-IoT (4G) networks and Bluetooth for communication. The NB-IoT network is included in the LTE Cat M1 variation.

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • 2G version:
    Frequency bands @ 2G (GSM): 850/900/1800/1900 MHz

  • 3G version with 2G fallback:
    Frequency bands  @ 2G (GSM): 850/900/1800/1900 MHz
    Frequency bands @ 3G (UMTS): 800/850/900/1900/2100 MHz

  • LPWA version (CatM / NB-IoT) with 2G fallback:
    Frequency bands @ 2G (GSM): 850/900/1800/1900MHz
    [email protected] 4G (LTE Cat M1/NB-IoT): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

Power supply

  • Build-in battery LiPo 3.7 V 1050 mAh
  • External power supply 9 – 32 V DC

Protection

  • Battery and a 1-Wire power line short circuit protection
  • Reverse polarity protection
  • Electrostatic discharge protection on USB, SIM card slot and 1-Wire data line
  • Overcurrent protection on a 1-Wire power line and digital outputs
  • Overvoltage protection on analog inputs
  • Charging protection

Inputs and outputs

  • 4 Digital inputs
  • 4 Analog inputs
  • 4 Digital outputs
  • 2 RS232 (Transparent mode, Fuel level sensors, iQFreeze, RFID reader, Alcohol sensor, Fatigue sensor, Camera, etc…)
  • 1 RS485
  • 3xCAN interfaces (2xCAN and 1xK-Line interfaces for CAN bus reading)
  • 1-wire interface (data and 5V power)

Other features

  • Micro USB and 3x indications LEDs
  • Accelerometer
  • Jamming detection
  • Driver registration and identification
  • Real-time monitoring of fleets and cargo
  • Remote tachograph solution
  • Fleet efficiency optimization
  • Driver behavior monitoring
  • Driver, vehicle, and cargo safety and security
  • Fuel monitoring
  • Cargo conditions monitoring
  • Trailer tracking
  • Customizable with accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47747

General information

PurposeVehicle
InstallationProfessional

Housing

Weight128 g (4.52 oz.)
Size101x74x23 mm (3.98x2.91x0.91 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeHPSA/UMTS 850/900/1900/2100, LTE 850/900/1800/1900, GSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 4G, 2G

Interfaces

Number of outputs4
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
On request
ECO drivingYes
Supported

Events monitoring

Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeInternal
Supported
CAN/OBDII parametersEngine load, Fuel level, Fuel consumption, Engine temperature, Engine speed, Speed, Throttle position, Mileage, Axle load, RPM, Handbrake state, Idling condition, DTC errors

Remote management

Remote outputs controlYes (over GPRS)
Supported
