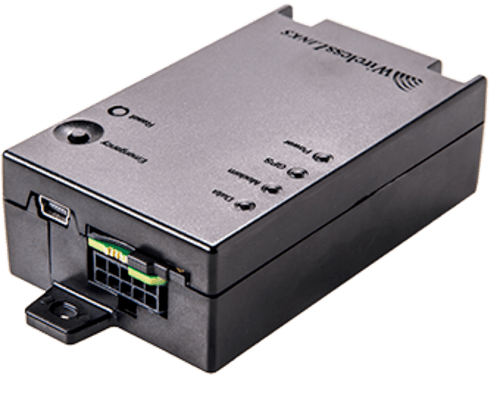

Wireless Links Piccolo STX

The Piccolo STX is a modular plug & play vehicle gateway providing fleet managers complete, real-time visibility to location, driver behavior, CAN Bus Interface, and temperature monitoring.

Show more

Location and tracking

  • GPS
  • Continuous tracking mode
  • LBS

Mobile networks

  • 2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ
  • 2G / 3G /4G

Power supply

  • Build-in 1000 mA battery
  • External power supply (type, capacity)

Inputs and outputs

  • 2 digital inputs
  • 1 analog input
  • 1 digital output

Other features

  • Flame retardant ABS/PC case
  • Local and remote management
  • Emergency button

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47671

General information

PurposeVehicle
InstallationDIY

Housing

Weight94 g (3.32 oz.)
Size85x52x25.4 mm (3.35x2.05x1 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 4G, 2G

Interfaces

Number of outputs1
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware features

Battery capacity1000 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported
Internal temperature sensorYes
Supported

Hardware extras

Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel consumption, Engine RPM, Engine load, DTC errors, Engine state
DTC codes readingYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
