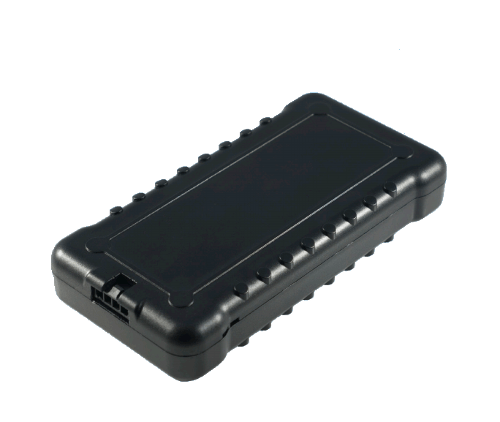

Positioning Universal FJ1000

FJ1000 is a lightweight and precise vehicle tracker with 4G support. Tracker is widely customizable with various accessories available upon request.

Show more

Location and tracking

  • GPS, GLONASS
  • Interval and continuous tracking modes
  • LBS

Mobile networks

  • Internal dual 4G LTE cellular technology
  • Internal GPS patch antenna
  • 2G / 3G/ 4G

Power supply

  • Optional 400 mAh battery

Inputs and outputs

  • 4 digital inputs
  • 4 outputs

Other features

  • 4G support
  • Up to 2K messages log when out of coverage
  • Cellular, GPS LED indication
  • Operating temperature -30 .. 80 C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47679

General information

PurposeVehicle
InstallationNot required

Housing

Weight72 g (2.54 oz.)
Size103x53x18.5 mm (4.06x2.09x0.73 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation4G

Interfaces

Number of outputs4
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Hardware extras

External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
OdometerYes
Supported

Events monitoring

External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote outputs controlYes
