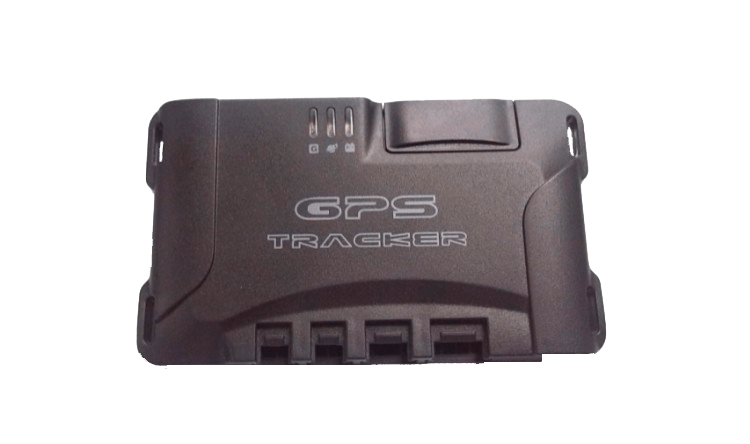

Portman GT3101

Portman GT3101 integrates GPS tracking functions and basic car alarm control functions into one unit. You can monitor the vehicle location and control the car alarm remotely. In addition, the unit will send event report if any triggers occur. It has built-in 7 outputs and 2 inputs to perform essential alarm and tracking functions.

Show more

Package contents

Portman GT3101 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Main unit
  • Operation manual
  • Wire harness
  • Build-in tiled sensor
  • PC-setup Cable
  • Built-in 300mA lithium-ion battery

Location and tracking

Portman GT3101 is embedded with GPS, it doesn’t support GLONASS or alternative systems.

Device supports either continuous or interval tracking mode.

Mobile networks

Portman GT3101 has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

GT3101 features a rechargeable 300 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).

Local and remote management

GT3101 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Portman GT3101 has three LED indicating:

  • Power
  • GSM/GPRS signal
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47741

General information

PurposeVehicle
InstallationProfessional

Housing

Weight50 g (1.76 oz.)
Size90x52x15 mm (3.54x2.05x0.59 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs7
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity300 mAh
Built-in batteryYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
On request

Tracking features

Tracking modesInterval, Continuous
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
