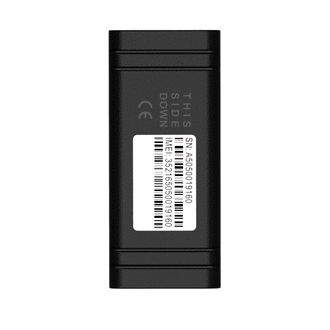

Oigo AR-2GM
The AR-2GM Tracker is a real-time vehicle tracking system designed for vehicle recovery, fleet management and more.
IT’S RELIABLE
The ultra-thin yet extremely durable AR-2GM is a high performance cellular tracking device designed for vehicle tracking, lot management, theft recovery, or other fleet applications. With an integrated GPS receiver, the AR-2GM includes a GPRS modem for wireless data communication and global coverage. The built in high performance antennas for both cellular radio and GPS receivers make installation easy.
IT’S SIMPLE
No programming skills required: The AR-2GM comes with easy-to-configure application software. Reports can be triggered periodically or in response to events such as motion, speeding, geo-fence violations, heading changes, towing, battery removal, and more.
IT’S FUNCTIONAL
The AR-2GM’s interfaces include a serial port for communication with terminals and devices, power, ground, four GPIO pins that can be used for dedicated ignition, relay, and I/O. Optional features include an internal Lithium-Ion back up battery (BuB) that allows for continuous operation and recovery.
Location and tracking
- 56 channels GPS chip (no GLONASS support)
- Continuous tracking mode
- No LBS support
Mobile networks
- Standard quad-band 850/900/1800/1900 MHz
- Only 2G networks
Power supply
- Build-in 80 mAh battery
Inputs and outputs
- 8-pin I/O connector
- UART (RX/TX)
- 4 GPIOs or dedicated I/Os, for Ignition, Relay, UART
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 46984 |
| Auto cadastro | Sim |
Informação geral
| Propósito | vehicle,asset |
Informações de localização
| Nível de sinal GNSS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Acelerômetro | Sim |
Interfaces
| Entradas digitais | 4 |
| Número de saídas | 4 |
