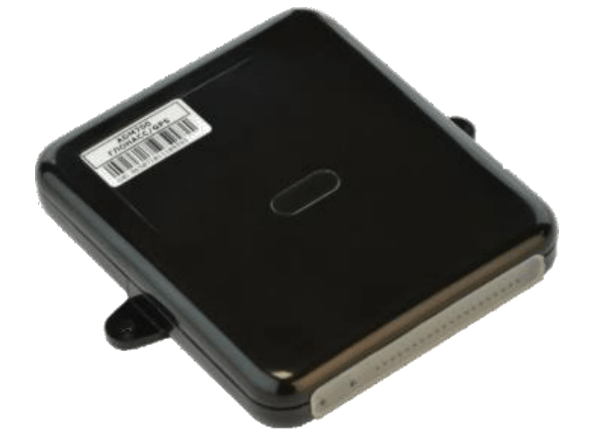

Neomatica ADM700

Neomatica ADM700 is designed to be installed on the vehicle as an additional device, recording the location of the vehicle, its speed, the direction of travel.

Show more

In addition, a number of other parameters of the vehicle are recorded, such as: status of analog inputs, digital inputs and sensor readings. Also, the terminal allows to control external equipment by means of discrete outputs, using commands received by GPRS or SMS. All events and states recorded by the terminal are stored in its energy-independent memory.

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • GSM/GPRS 800/900/1800/1900
  • 2G

Power supply

  • Build-in battery (Li-Pol, 1000 mAh)
  • External power supply (+8..+48 V DC)

Inputs and outputs

  • 6 analog inputs
  • 2 digital (impulse) inputs
  • 4 digital outputs
  •  2 audio outputs

Other features

  • LED indication
  • CAN reader
  • Memory card slot
  • Built-in tamper switch

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47758

General information

PurposeVehicle
InstallationProfessional

Housing

Weight250 g (8.82 oz.)
Size147x138x25 mm (5.79x5.43x0.98 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM/GPRS 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of RS232 interfaces2
Number of outputs6
Number of inputs (all types)6
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced GNSS location update over SMSYes
On request
