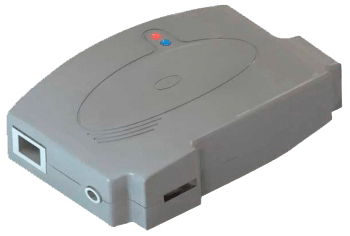

Lantrix T1800

Lantrix T1800 tracker is dedicated to the monitoring and control of all types of vehicles. Because of its small dimensions it is easy to hide in most of the cars, and motorcycles.

Show more

The device has external GSM and GPS antennas which allows to improve signal quality in cases when the device is placed behind metal parts or in places that block the signal.

Location and tracking

  • Continuous tracking mode

Mobile networks

  • 850/900/1800/1900 Mhz
  • 2G Network

Other features

  • Remote management
  • LED indication

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47685

General information

PurposeVehicle
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size112x77x27 mm (4.41x3.03x1.06 in)

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)6
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Tracking features

Tracking modesContinuous

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
