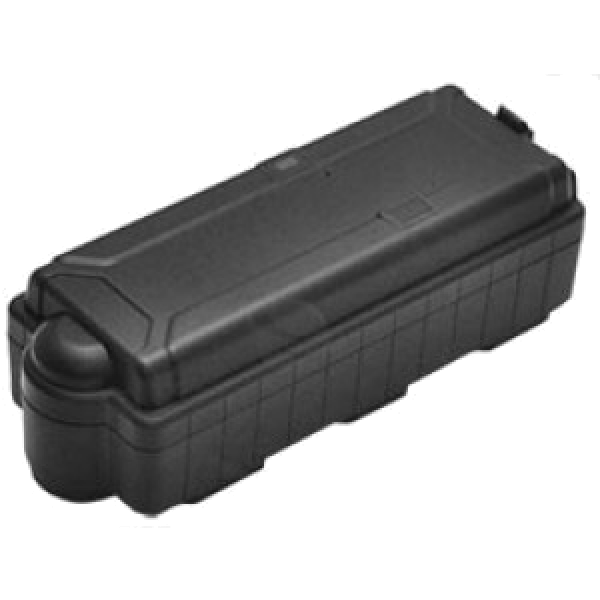

Kingneed TK-20

KingNeed Magnet GPS Tracker is a flexible personal security device with multi-usage. Uses a unique blend of GPS, GSM, and Wi-Fi technology to help user locate their values both indoors and out.

Show more

Product features:

  • 20000 mAh Lithium-Polymer battery
  • Maximum 1600 days working time
  • Motion alert and Drop-trigger alert build-in
  • WiFi indoor locate with 10-50 meter position accuracy
  • Support up to 32G byte memory card extend
  • No installation need, easy attach to any iron surface
  • AGPS+WiFi+GSM mix advanced location technology
  • Water-Proof design with strong magnets built-in

Location and tracking

  • GPS
  • A-GPS
  • LBS

Mobile networks

  • GSM 850/900/1800/1900
  • 2G Network

Power supply

  • Build-in battery (20000 mAh Li-Po)
  • Up to 1600 days working time

Local and remote management

  • Remote GPRS commands
  • Server connection setup over SMS

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46982

General information

PurposeVehicle, Asset
InstallationDIY

Housing

Weight569 g (20.07 oz.)
Size153x58x45 mm (6.02x2.28x1.77 in)
Waterproof classIPX7
Magnet mountingYes

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity20000 mAh
Built-in batteryYes
Emergency buttonYes
Supported
Detach sensorYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

EACYes
