Globalsat TR-600

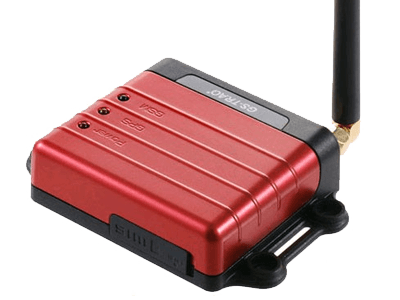

GlobalSat TR-600 is an advanced vehicle GPS terminal with a wide range of expert fleet management options. Also, it can be used for personal needs.

Show more

The device is equipped with GPS and GSM external antenna and has multiple inputs and outputs to check and control vehicle sensors.

It can be installed in CAN port get a complicated data from an onboarder.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47779
Integrated on02/09/2013

General information

PurposeVehicle

Housing

Weight62 g (2.19 oz.)
Size98x65x22 mm (3.86x2.56x0.87 in)

GNSS Location

External antenna (GNSS)Yes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)No
External antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of RS232 interfaces1
Number of outputs3
Number of inputs (all types)5
Discrete inputsYes
Supported
Analog inputsYes
Supported
Frequency inputsYes
RS232 interfaceYes
OutputsYes

Hardware features

Battery capacity820 mAh
Built-in batteryYes

Events monitoring

Input changeYes
Supported

Self monitoring

GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
