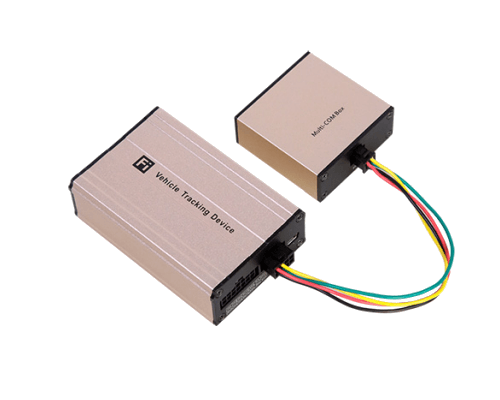

Fifotrack A600

Fifotrack A600 is an advanced model which is suitable for fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, rent car management and private car antitheft, etc. Fifotrack A600 supports 4 RS232 ports and 1-Wire protocol, this enables A600 to have powerful functions such as taking pictures, driver identification and management, impulse detection and temperature monitoring.

Show more

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G Network

Power supply

  • Build-in battery (600mAh/3.7V)
  • External power supply (11~36 V)

Inputs and outputs

  • 4 Discrete inputs
  • 2 Analog inputs
  • 1 Impulse input
  • 2 Digital outputs

Other features

  • Emergency button
  • Remote management
  • Microphone
  • Camera
  • 1-Wire
  • RS232 and RS485 interfaces

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46993

General information

PurposeVehicle
InstallationProfessional

Housing

Weight145 g (5.11 oz.)
Size90x60x27 mm (3.54x2.36x1.06 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of RS232 interfaces4
Number of outputs2
Number of inputs (all types)7
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
On request
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Voice listeningYes
On request
Emergency buttonYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
CameraYes
On request

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Antenna cut offYes
Supported
Fall/ShakeYes
Supported

Self monitoring

Network operator IDYes
On request
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
