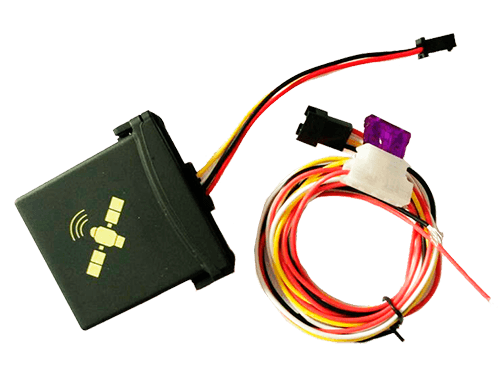

C2STEK TR-11

TR-11 is developed by “openCPU” technology which brought lower cost, lower power consumption and fast response speed advantages. It’s reputed with have industrial level performance but on MTK solution pricing.

Specification

GSM / GPRS features:

• FIBOCOM G510 (Quad-bands, 850/900/1800/1900MHz)
• GPRS class 10
• SMS (text, data)
• Voice calling

GPS features:

• Skylab GPS Receiver (Sirf III chip)
• -160dB Sensitivity

Hardware features:

• OpenCPU Technology
• 2000Waypoints for GPRS Null zone data storage
• Internal GSM/GPS Antenna
• Automatic Moving/Static detection
• Internal backup battery with 350mAH

Power Supply and consumption

• This device is expected to connect with a DC power source with range of 11.2-36V DC.
• Working current maximum 2A input.
• In standby mode, device working current < 40mA @12V DC
• In sleep mode, working current is less than 6mA @12V DC.

Features

• SMS/GPRS Communication
• Wide Power range: 9-36V DC/1.5A
• I/O Ports: Ignition, Immobilizer< Panic as optional>
• SMS/GPRS Data Transmit
• Low Power consumption
• Internal memory store for GPRS null zone data 2000waypoints
• Time based/Distance based position report
• Mileage Report
• Alarm alerts: Speed over, Power tamper
• Internal battery included
• OTA
