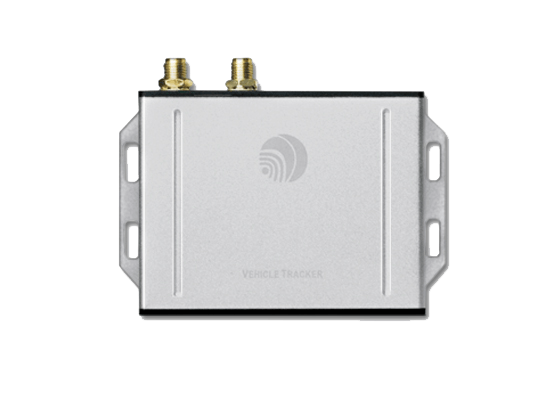

Bofan PT521
Bofan PT521 is a cost-effective vehicle tracking device.
Package contents
Package contents include:
- Device
- GPS Antenna
- GSM Antenna
- Plug-in power wires
Location and tracking
Bofan PT521 model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology or LBS services.
The tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle to form a smooth trajectory consistent with the actual road.
Mobile networks
With Quad-band GSM 3G module BofanPT521 can be operated all over the world.
Power supply
External power supply might be 9-36V, which makes possible to install PT521 both on cars and vans.
PT521 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).
Local and remote management
Bofan PT521 can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Features
- Take Photos & Voice Monitoring
- Real-time online tracking via GPRS
- Update position online via time interval, distance, angle, move ratio and ACC ratio
- SOS alarm (available to preset 3 SOS number)
- External power cut alarm and low battery alarm
- Speed alarm, Geo-fence alarm, Shake alarm, Drowsy Driving alarm
- Stop Vehicle remotely via relay (Stop Engine)
- Engine On/Off alarm, engine on hours report
- Position logging capacity up to 16,000+ waypoints if no GPRS signal
- Update door open/close status, available to control open/close vehicle door by SMS or platform
- Available to set different alarm notification ways, such as via SMS, call or email
- Synchronous record vehicle mileage
- Available to send mileage alarm to remind vehicle maintenance
- Automatically stop vehicle or activate buzzer/siren when Geo-fence, speed alarm or any other alarm trigger
- I/O: 2 digital inputs, 1 negative and 1 positive triggering; 1 output
- Analog Input: 1*12bits resolution analog inputs
- OTA(upgrade firmware remotely)
- Impact Alarm
- 3G communication
Accessories
The manufacturer offers original accessories, such as:
- Cut engine relay
- Microphone
- Fuel Sensor
- Temperature sensor
- USB cable
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47704 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 150 g (5.29 oz.) |
Informações de localização
| Nível de sinal GNSS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 2 |
| Número de saídas | 1 |
| Sensor analógico | Sim |
