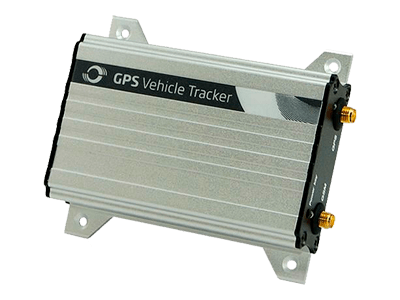

Meitrack MVT340

Meitrack MVT340 is a vehicle GPS tracker for using in personal cars to control the safety and status of the vehicles. It has the external GPS and GSM antennas and a full set of the popular tracking features.



Mostrar más

Location and tracking

MVT340 model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

  • 2 inputs (1 negative input and 1 positive input)
  • 1 analog detection input
  • 1 output
  • 1 USB port

Mobile networks

With Quad-band GSM 2G module Meitrack MVT340 can be operated all over the world.

Power supply

Meitrack MVT340 uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

MVT340 has two status LEDs:

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47752
Auto registro

Información general

FinalidadVehículo

Conectividad

Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada de GNSS preferente a SMS

Características

Control remoto de las salidas
Odómetro

Interfaces

Entradas digitales2
Número de salidas1
Sensor analógico
