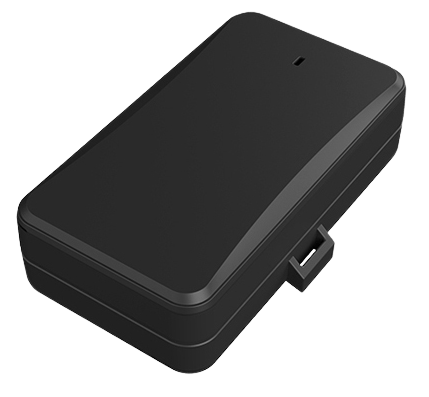

Jimi JM-LL01

The JM-LL01 is an LTE asset tracker with ultra-long standby time to protect and track cargos as long as possible. So depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. Also, the JM-LL01's strong magnetic base allows for effortless installation onto any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

Mostrar más

The JM-LL01 is an LTE asset tracker with ultra-long standby time to protect and track cargos as long as possible. So depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. Also, the JM-LL01’s strong magnetic base allows for effortless installation onto any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

GPS & WiFi & LBS Positioning. A synergy of multiple positioning systems ensures the locations to be accurately displayed on the platform.
LTE: Cat M1 & NB2 & GSM. The device can receive and transmit data in the coverage of 4G and 2G networks.
10,000 mAh Battery. Allows ultra-long standby time, also the device can be redeployed after charging.

Strong Magnetic Base. Can be attached to a metallic surface tightly, you don’t have to pay much time for installation.

Tamper Alert. When light exposure is detected by a light sensor, you’ll get notified of device removal.

IP65 Dust & Water Resistance. Rugged and reliable design ensures stable operation in tough conditions.

Bluetooth Configuration. You can download a designated app and configure the device’s parameters on it.

Location and tracking

  • GPS
  • Continuous and interval tracking modes
  • LBS

Mobile networks

  • EGPRS: 850/900/1800/1900 MHz
  • LTE CAT M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66
  • LTE/EGPRS

Power supply

  • External battery 10000 mAh 3.7V industrial-grade Li-Polymer battery

Other features

  • Tamper alert
  • Ultra-long standby time
  • Local and remote management
  • IP65 Dust & Water Resistance
  • Do-it-yourself Installation
  • Bluetooth Configuration
  • Strong Magnetic Base

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47755

Información general

PurposeDispositivo, Vehículo, Cargo
InstalaciónDIY (HUM)

Alojamiento

Peso297 g (10.48 oz.)
Tamaño109x61x30.5 mm (4.29x2.4x1.2 in)

Localización GNSS

GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular4G, 2G

Características de hardware

Sensor de corte
Soportado

Características de rastreo

Modos de rastreoIntervalo, Continuo
Localización por Cell ID
Soportado
Odómetro
On request

Monitoreo de eventos

Poca batería
Soportado
Desconexión
Soportado

Automonitoreo

Nivel de señal
Soportado
ID del operador
Soportado
Nivel de señal GNSS
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS)
Soportado
