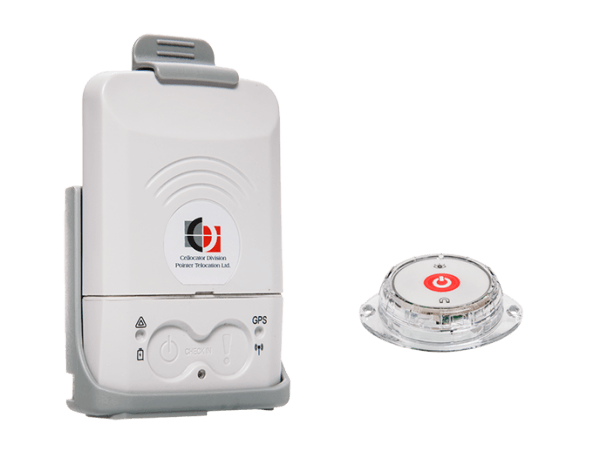

Cellocator CelloTrack Nano 20

The CelloTrack Nano solution provides precisely the knowledge you need to manage your cargo and mobile assets more effectively. It enables real-time as well as offline monitoring of the location and condition of cargo, assets and goods, including specific alerts related to issues and delays, using its internal sensors and the capability to track a wide area of remote wireless sensors around it.

Mostrar más

The CelloTrack Nano strengths lie in it’s versatility and modularity which enable you to meet almost any of your monitoring needs, such as: real-time monitoring of temperature and humidity controlled containers, verification that the required shipment conditions of high-value goods, efficient monitoring of rented assets such as storage containers and construction machines, a quick and intuitive way to indicate distress by activating a panic button. It comes in 2G, 3G and 4G variants and supports a wide area of remote wireless sensors (MultiSenses).

Location and tracking

CelloTrack Nano is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

Mobile networks

Depending on a version it comes with Quad-band GSM 2G or 4G or Five-band 3G module which enables it to be operated all over the world.

Power supply

Device is equipped with rechargeable battery via Micro USB connector and doesn’t require any external power source.

Internal battery enables up to 5 weeks of transport chain usage.

Local and remote management

Cellocator CelloTrack Nanocan be configured and managed only by using special «Cellocator Programmer» software.

Also you will need PL-file to configure the device

Features

CelloTrack Nano offers following features:

  • Built-in Quad band (or Five band depending on a version) modem
  • High-end SiRFstarIV™ chipset based GPS module for advanced performance & accuracy
  • Event Memory: ~10 K full time stamped events
  • Built-in internal sensors: temperature, light, impact, movement, pressure, sound (microphone)
  • Used as a hub for a Wireless Sensor Network via BLE interface
  • Advanced MMI: buzzer, status LEDs, multi-function buttons
  • Small size for quick and easy installation
  • Dual Tampering detection
  • IP 56 (dust and water jets), UV and chemicals protected

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47718

Información general

Finalidadvehicle,asset

Conectividad

Estado de roaming
Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS

Características

Odómetro

Interfaces

Entradas digitales1
Sensor analógico
