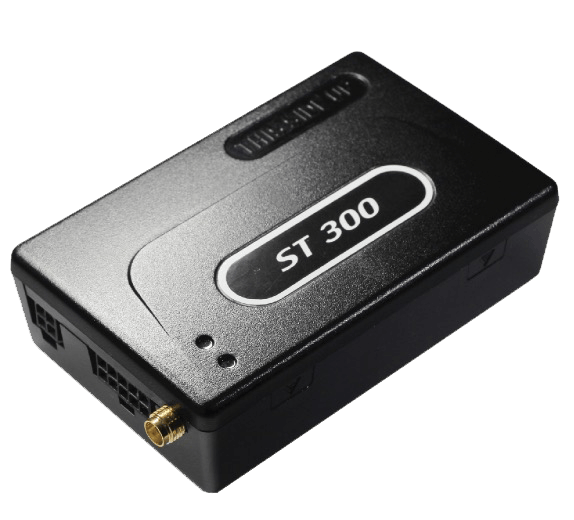

Suntech ST300

Suntech ST300  is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability. It also features Bluetooth/Wi-Fi support and Dual-SIM option.

Mostrar más

Location and tracking

Suntech ST300 model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module ST300 can operate all over the world where 2G networks are supported.  It also features Dual-SIM support, so you can use 2 different GSM-providers.

Features

Key features of the ST300 device are:

  • 2 outputs, 6 inputs and one ignition line.
  • 7 more pins for RS232, RPM, Odometer, etc.
  • Upgrading Firmware Over The Air (FOTA)
  • Parking Lock – device is able to check if the vehicle moves away from the pre-defined parking boundary or starts moving without having a mode of the ignition on. In case the device recognizes such an unauthorized moving or driving, it sends an emergency report immediately.
  • Over speed – device checks speed of the vehicle and sends an alert to the server if the vehicle moves faster than the pre-defined over-speed threshold values.
  • Checking Connectivity of GPS Antenna – device alerts when GPS antenna is disconnected. It is applicable only to the device models which have the external antenna.
  • Checking Status of Main Power Source – device recognizes its connectivity with the main power source (i.e. vehicle’s battery) and is able to inform the server about status on whether or not the main power line is disconnected. The device is also able to inform the server about the voltage level status of the main power source and informs the server in case the voltage level of the main power source drops down below the pre-set value. This function is applicable to battery-installed device models only.
  • Alerting Battery Error
  • Bluetooth connectivity
  • Wi-Fi compatibility (802.11b/g support)
  • Memory extension with MiniSD cards (up to 8Gb)

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Suntech ST300 also features an optional rechargeable backup battery. When fully charged it ensures about 3-4 hours of device uptime (in normal conditions).

Power Saving Modes

The device works in one of the three operation modes.

Driving mode:
This mode starts when ‘Ignition’ of the vehicle is ON.

Parking mode:
This mode is operational when ‘Ignition’ is OFF for duration longer than the pre-defined time.
In parking mode, the device can get into special power saving modes like ‘Sleep mode’ and ‘Deep sleep mode’.

Emergency mode:
This mode works either when panic button is ON or when one of any pre-defined events occurs

Local and remote management

GPS tracker Suntech ST300 can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

In case ‘firmware’ of the device has an (some) error(s) or needs to be upgraded to provide the user with newly implemented services, the device can upgrade its internal ROM file over the air (Firmware OTA), using GPRS. The users do not need to visit the vehicle individually to download the new firmware on those vehicles.

LED Indication

ST300 has two LEDs

  • LED indicating GPS reception
  • LED indicating GSM/GPRS reception

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47728
Integrado19/03/2015

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso100 g (3.53 oz.)
Tamaño90.5x58x26 mm (3.56x2.28x1.02 in)

Localización GNSS

Antena interna (GNSS)No
Antena externa (GNSS)
GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)No
Antena externa (Conexión)
Generación de red celular2G
WiFi

Interfaces

Número de salidas2
Número de entradas (todos tipos)12
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz RS232
Interfaz 1-Wire
Salidas
Soportado

Características de hardware

Capacidad de batería450 mAh
Batería integradaOpcional
El botón de pánico
Soportado

Hardware extras

Lectura del sensor del nivel de combustible
Soportado
El botón de pánico
Soportado
Lectura del identificador del conductor
On request

Características de rastreo

Modos de rastreoContinuo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado
Odómetro

Monitoreo de eventos

Poca batería
Soportado
Dispositivo on/off
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Actualización de firmware OTA

Certificacón

CE
FCC
EAC
