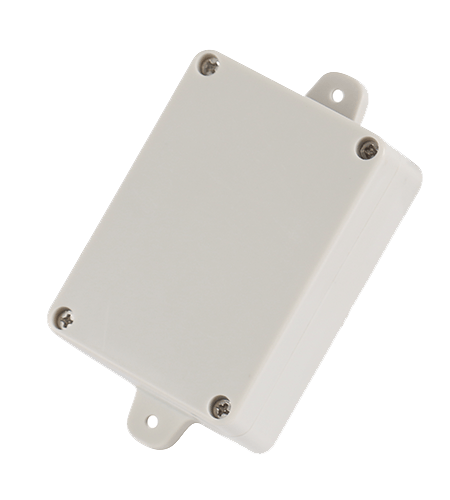

Pretrace TC85

Pretrace TC85 is designed for assets tracking, especially for container tracking. Four built-in batteries with 8800Mah, with super low power consumption, allow it to operate autonomously for more than 1000 days. Water resistant and anti-dust provides an optimal solution for protecting against temperature, dust, and water spray. It is an ideal self-contained device for long term tracking deployments.

Mostrar más

Packaging content:

  • TC85 tracking device
  • User manual

Features:

  • Super Long Standby Time up to 1000 Days
  • Water Resistant, Anti-Dust, IP66
  • Easy installation
  • Internal 3-axis G-sensor for Motion Detection
  • Quad band 850/900/1800/1900 MHz
  • GPS and GSM Base Station Bi-Module Positioning
  • Low Power Consumption with Inbuilt Battery
  • Internal GSM/GPS Antennas for Easy Installation
  • Low Battery Alarm by SMS
  • OTA (Firmware Update via Wireless)
  • CE/RoHS Certified

Applications:

  • Asset tracking
  • Transportation tracking

Specifications:

  • Power Consumption: on average 15μA
  • Standby time: 10 minuted Reporting: More than 380 hrs

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: <2.5m
  • Sensitivity: -165dBm

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor46985
Auto registro

Información general

FinalidadDispositivo

Información de ubicación

Nivel de señal GNSS

Características

Odómetro

Interfaces

Active un dispositivo en la plataforma Probar
¿No ha encontrado su dispositivo? Podemos añadirlo Integrar
