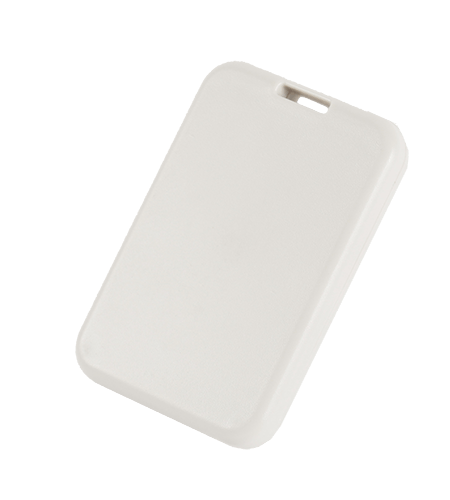

Pretrace TC80

Pretrace TC80 is optimized for assets tracking. It will operate autonomously for more than 300 days under optimal configuration, which is an ideal self-contained device for long term tracking deployments. Its built-in 3-axis G-sensor allows TC80 to detect asset movement and transmit an alert message. Its friendly thin size (13.6mm) design can be easily hang it up on the neck, use like an access card, or fix it on the objects, which is easy hidden.

Mostrar más

Packaging content:

  • TC80 tracking device
  • User manual

Features:

  • Long Standby Time up to 300 Days
  • Easy installation
  • Internal 3-axis G-sensor for Motion Detection
  • Quad band 850/900/1800/1900 MHz
  • GPS and GSM Base Station Bi-Module Positioning
  • Low Power Consumption with Inbuilt Battery
  • Internal GSM/GPS Antennas for Easy Installation
  • Low Battery Alarm by SMS
  • OTA (Firmware Update via Wireless)
  • CE/RoHS Certified

Applications:

  • Asset tracking
  • Transportation tracking

Specifications:

  • Power Consumption: on average 15μA
  • Standby time: 5 minuted Reporting: More than 85 hrs

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: <2.5m
  • Sensitivity: -165dBm

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor46985
Auto registro

Información general

FinalidadDispositivo

Información de ubicación

Nivel de señal GNSS

Características

Odómetro

Interfaces

Active un dispositivo en la plataforma Probar
¿No ha encontrado su dispositivo? Podemos añadirlo Integrar
