Galileosky v4.0

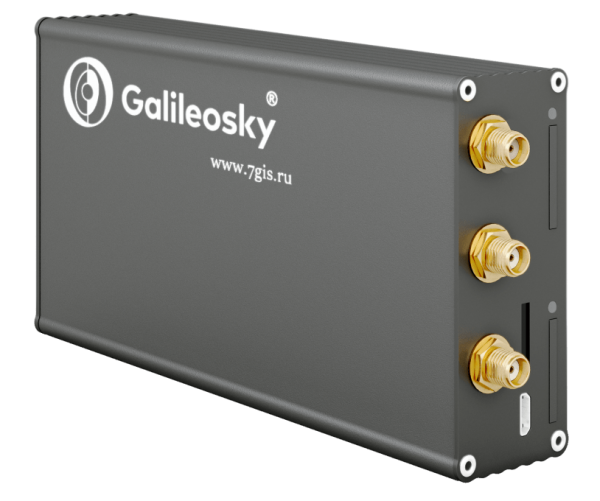

Galileosky 4.0 is a vehicle GPS/GLONASS tracker combines convenience and quality. It is specially designed for fleet management as well as personal needs of vehicle and van owners. The device has a wide range of options due to multiple inputs, outputs and interfaces. Also, it is equipped by external GNSS and GPRS antennas. The deviced can work in IRIDIUM networks, which allows it to pass its position even when GSM networks are not available.

Mostrar más

Package content

Galileosky 4.0 package contents:

  • Tracking device
  • Device passport
  • Branded packaging
  • Cable Assembly
  • GPS GSM Antennas
  • IRIDIUM Antenna

Location and tracking

Galileosky 4.0 models are embedded with GPS with the support of GLONASS as well.

As the back-up, when no satellites signals are available, the device uses Cell ID location (also known as LBS-tracking).

Mobile networks

Galileosky 4.0 has GSM 900/1800 class antenna, so it can be operated only in Europe and Asia.

Main features:

The main features of the Galileosky 4.0 are:

  • GPS and GLONASS support
  • IRIDIUM support
  • RS-232, CAN and 1-Wire functionality
  • SOS-button
  • Power saving mode
  • FOTA and remote device configuration
  • Fuel control

Power supply

Galileosky 4.0 features 600 mAh built-in rechargeable battery. It allows the device to work up to 3 days.

Local and remote management

Galileosky 4.0 can be controlled and configured over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back.

Also, if you want to configure Galileosky 4.0 via PC, you will need a special USB-cable, which is not included into a standard package. The configuration is done in “Galileosky Configurator” software.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47773
Auto registro

Información general

FinalidadVehículo
Tamaño157x72x28 mm (6.18x2.83x1.1 in)
Antena externa (GNSS)Yes
Antena externa (Conexión)Yes

Conectividad

Nivel de señal
Tipo de la red del celularGSM 900/1800
Generación de red celular2G

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS
GPS
GLONASS

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor
Batería integradaYes
Capacidad de batería600 mAh

Interfaces

Entradas digitales6
Número de salidas4
Sensor analógico
Sensor de impulsos
Sensor de frecuencia
Interfaz RS485Yes
Interfaz 1-WireYes
Tipo de lector CAN/OBDIIYes
