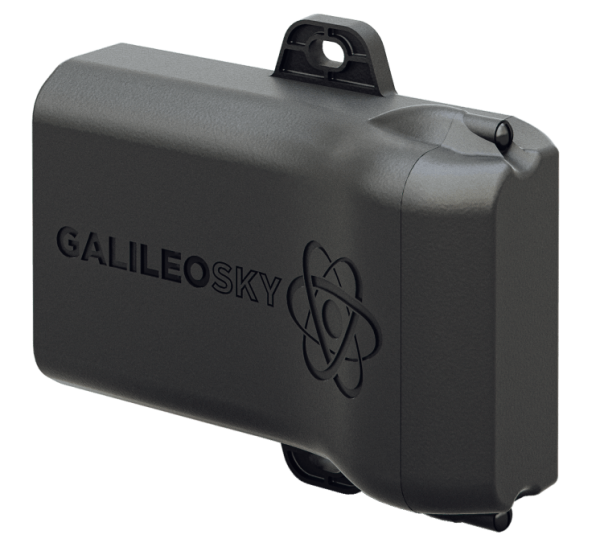

Galileosky Boxfinder

Galileosky Boxfinder  is a GPS/GLONASS tracker specially designed for fleet management as well as personal needs of vehicle and van owners. It also can be used for tracking your assets, like containers and big parcels thanks to its long-lasting battery. A device can work during 10 years without a single recharge. This device has a high IP65 waterproof and dustproof class and can operate without any kind of additional assistance for a long time. It works with GPS and GLONASS systems and it is able to connect to GSM and IRIDIUM networks.

Mostrar más

Package content

Galileosky Boxfinder package contents:

  • BOXFINDER device
  • Device passport
  • Testimony about the equipment of the mobile object terminal BOXFINDER
  • Branded packaging
  • Cable Assembly

Location and tracking

Galileosky Boxfinder models are embedded with GPS with the support of GLONASS as well.

As the back-up, when no satellites signals are available, the device uses Cell ID location (also known as LBS-tracking).

Mobile networks

Boxfinder has GSM 900/1800 class antenna, so it can be operated only in Europe and Asia.

Main features:

The main features of the Galileosky Boxfinder are:

  • GPS and GLONASS support
  • LBS locating
  • IRIDIUM connectivity (optional)
  • Acoustic control of environment around a tracker
  • Inputs/Outputs for SOS button, Temperature sensor, Fuel Sensor, RFID reader and cut-engine relay availability
  • Absolute water and dust protection (IP65)
  • Low and high-temperature ambient conditions operation: from -40°C to +85°C (-40°F to +185°F)
  • Absolutely independent power supply
  • Easy and solid mounting in a vehicle or container
  • Accelerometer
  • Smart sleep mode
  • Decapsulation sensor

Power supply

Galileosky Boxfinder features a 14 aH built-in rechargeable battery. It allows the device to work up to 10 years (if sending the location only 2 times a day).

Local and remote management

Boxfinder device can be controlled and configured over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back.

Also, if you want to configure Galileosky Boxfinder via PC, you will need a special USB-cable, which is not included into a standard package. The configuration is done in «Galileosky Configurator» software

LED Indication

Galileosky Boxfinder has one LED to indicate GSM and GPS/GLONASS modules[/vc_column_text][/vc_column][/vc_row]

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47773
Integrado11/12/2011

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso350 g (12.35 oz.)
Tamaño125x102x42 mm (4.92x4.02x1.65 in)
ImpermeableIP6X

Localización GNSS

Antena interna (GNSS)
GPS
GLONASS

Conectividad

Tipo de la red del celularGSM 900/1800
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de entradas (todos tipos)4
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Entradas de impulsosYes, Sí
Soportado
Entradas de frecuencia
Soportado
Interfaz 1-Wire
Soportado

Características de hardware

Capacidad de batería14000 mAh
Batería integrada
El botón de pánico
Soportado
Relé del bloqueo del motor
Sensor de la temperatura interna

Hardware extras

El botón de pánico
Soportado
Lectura del identificador del conductor
Soportado

Características de rastreo

Modos de rastreoIntervalo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado

Monitoreo de eventos

Cambio de entrada
Soportado
Remolque
On request
Ranura de tarjeta SIM abierta

Automonitoreo

Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Control remoto de las salidasSí (por GPRS), Sí
Soportado

Certificacón

CE
EAC
