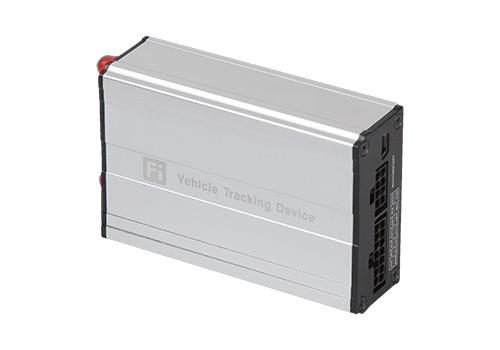

fifotrack A300

fifotrack A300 is an advanced model which is suitable for fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, rent car management and private car antitheft, etc. A300 supports RS232 and 1-Wire protocol, this enables A300 to have powerful functions such as taking pictures, driver identification and management, impulse detection and temperature monitoring.

Mostrar más

Besides the advanced functions, A300 has full functions to cover the normal demands of vehicle tracking. Not only has fuel monitoring, harsh acceleration/braking alarm, driving behavior analysis, but also has custom digital input, jamming detection, two-way calling and FOTA functions.

Package contents

Package contents include:

  • Device
  • GPS Antenna
  • GSM Antenna
  • Wires

Location and tracking

fifotrack A300 model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. As a backup it uses Cell-ID or LBS services to get the location of the unit.

The tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle to form a smooth trajectory consistent with the actual road.

Mobile networks

With Quad-band GSM 2G module fifotrack A300 can be operated all over the world.

Power supply

External power supply might be 11-36V, with an over-voltage protection, which makes possible to install A300 both on cars and vans.

A300 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-5 hours of device operation (in normal conditions).

Local and remote management

fifotrack A300 can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Features

fifotrack A300 has following features:
  • Real Time Tracking
  • Stop Car Remotely
  • Fuel monitoring
  • 8 MB Flash Memory
  • Custom Digital Input
  • Detect ACC Status to Inhibit Static Drift
  • FOTA
  • Uploading Mode Settings for ACC ON/ACC OFF
  • Two-way Calling And Monitoring

Accessories

The manufacturer offers original accessories, such as:

  • Relay
  • AS20 Ultrasonic fuel sensor
  • Microphone
  • Speaker
  • AS10 Fuel sensor
  • USB Cable

LED Indication

fifotrack A300 has three LED indicating:

  • Battery charge
  • GSM/GPRS mode
  • GPS signal reception

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor46993

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso160 g (5.64 oz.)
Tamaño90x60x27 mm (3.54x2.36x1.06 in)

Localización GNSS

Antena externa (GNSS)
GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena externa (Conexión)
Generación de red celular2G

Interfaces

Número de salidas2
Número de entradas (todos tipos)6
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Entradas de impulsos
On request
Interfaz RS232
On request
Interfaz 1-Wire
Salidas
Soportado

Características de hardware

Capacidad de batería600 mAh
Batería integrada
El botón de pánico
Soportado

Hardware extras

Escuchar la vozOpcional
Lectura del identificador del conductor
Soportado

Características de rastreo

Modos de rastreoContinuo
Odómetro
Soportado
ECO driving
Soportado

Monitoreo de eventos

Poca batería
Soportado
Corte de alimentación externa
Soportado
Corte de antena
Soportado

Automonitoreo

Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Actualización de firmware OTA
Localización forzada de GNSS por SMS
On request

Certificacón

CE
FCC
