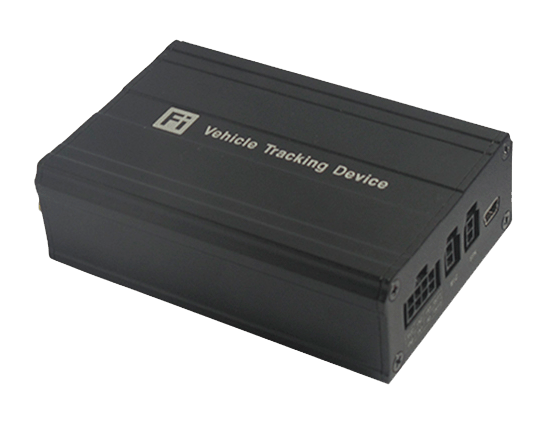

fifotrack A100

fifotrack A100 is a multifunctional model which is suitable for fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, rent car management and private car antitheft, etc. It can integrate with different sensors and collect the specific data as per customers' requirements.

Mostrar más

Besides, A100 has core functions to meet users’ demands, such as harsh acceleration/braking alarm, driving behavior analysis, custom digital input, jamming detection, two-way calling and FOTA.

Package contents

Package contents include:

  • Device
  • GPS Antenna
  • GSM Antenna
  • Wires

Location and tracking

fifotrack A100 model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. As a backup it uses Cell-ID or LBS services to get the location of the unit.

The tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle to form a smooth trajectory consistent with the actual road.

Mobile networks

With Quad-band GSM 2G module fifotrack A100 can be operated all over the world.

Power supply

External power supply might be 11-36V, with an over-voltage protection, which makes possible to install A100 both on cars and vans.

A100 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-5 hours of device operation (in normal conditions).

Local and remote management

fifotrack A100 can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Features

fifotrack A100 has following features:
  • Real Time Tracking
  • Stop Car Remotely
  • Fuel monitoring
  • 8 MB Flash Memory
  • Custom Digital Input
  • Detect ACC Status to Inhibit Static Drift
  • FOTA
  • Uploading Mode Settings for ACC ON/ACC OFF
  • Two-way Calling And Monitoring

Accessories

The manufacturer offers original accessories, such as:

  • Relay
  • AS20 Ultrasonic fuel sensor
  • Microphone
  • Speaker
  • AS10 Fuel sensor
  • USB Cable

LED Indication

fifotrack A100 has three LED indicating:

  • Battery charge
  • GSM/GPRS mode
  • GPS signal reception

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor46993
Auto registro

Información general

FinalidadVehículo

Conectividad

Nivel de señal
ID del operador

Información de ubicación

LBS

Características

Control remoto de las salidas
Odómetro

Interfaces

Entradas digitales3
Número de salidas2
Sensor analógico
