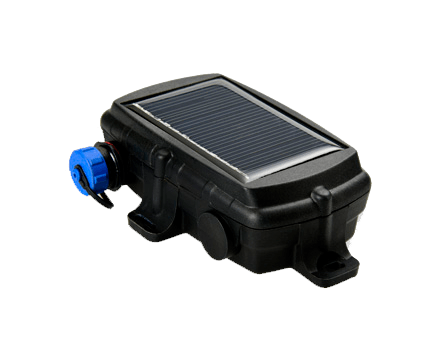

Digital Matter G52S

Digital Matter G52 Solar’s rugged housing and built in solar panel allows the device to monitor and track assets in harsh and remote environments, without the need for an external power source. This compact 2G or 3G GPS tracking device provides telemetry using the power of the sun.

Mostrar más

Location and tracking

Digital Matter G52S is embedded with GPS, and has the support of GLONASS system as well.

The G52S AssistNow Offline feature is aiding data for extremely fast time-to-first-fix and performance in urban canyon environments. GPS signals are boosted by a special low-noise amplifier (LNA). This allows the G52S to operate where normal units will fail to receive GPS signal.

Mobile networks

The G52S can be manufactured for specific markets around the world with cellular modem modules approved by all the major networks – 2G or 3G.

Power supply

External power supply might be 9V to 24V, which makes possible to install the G52S both on cars and vans.

The standard 800 mAh LiPo backup battery allows the G52S to operate when external power is removed for up to 5 days, depending on the amount of movement.

The G52S can provide power to external peripherals via the 5V power line, allowing sensors and peripheral devices to be powered.

Inputs and outputs

There are following interfaces available:

  • Inputs:
    • 1 x Ignition line
    • 1 x digital inputs permanently pulled-down
  • Outputs:
    • 1 x switched ground digital output, easily wired up to switch external lights, relays, buzzers, sirens, motors and other devices
  • Other:
    • Digital Matter has the ability to connect a range of peripherals via the DMCAN peripheral port. Peripherals such as the AgriCAN expansion board can be used with the G52S.

Local and remote management

The G52S is configured only with the help of manufacturer’s server. No automatic activation is available.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor46992

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso160 g (5.64 oz.)
Tamaño126x80x33 mm (4.96x3.15x1.3 in)
ImpermeableIP6X

Localización GNSS

Antena interna (GNSS)
GPS
GLONASS

Conectividad

Tipo de la red del celularGSM Six Band
Antena interna (Conexión)
Generación de red celular3G, 2G

Interfaces

Número de salidas1
Número de entradas (todos tipos)2
Entrada ACC/ignisión
Soportado
Salidas
On request

Características de hardware

Capacidad de batería800 mAh
Batería integrada
Acelerómetro
Sensor de la temperatura interna
Soportado

Características de rastreo

Modos de rastreoIntervalo
ECO driving
Soportado

Monitoreo de eventos

Poca batería
Soportado
Corte de alimentación externa
Soportado
Accidente de tráfico
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Voltaje de alimentación externa
Soportado

Certificacón

CE
FCC
