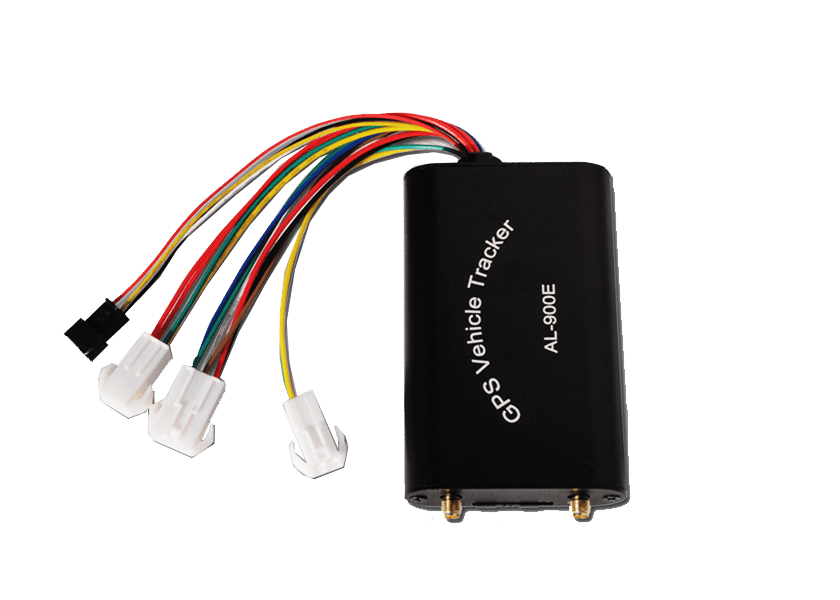

Auto Leaders AL-900E

Auto Leaders AL-900E is a cost-effective vehicle tracking device with a multiple set of functions. It is applicable for taking photos, driver RFID identification, monitoring fuel consumtion, and all standart features of a vehicle tracking device.

Mostrar más

Package contents

Standart package include:

  • AL-900E device
  • GPS external antenna
  • GSM external antenna
  • 4-pin cable
  • 6-pin cable

As an option manufacturer offers:

  • Camera
  • LCD-display
  • Dispatch handler
  • RFID card machine
  • Fuel sensor
  • External speaker
  • External mic
  • Shock sensor
  • Door sensor
  • Engine relay

Location and tracking

AL-900E model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

AL-900E has a Quad-band GSM module, so it can be operated all over the world where 2G networks are supported.

Features

AL-900E has such special features as:

  • Showing real-time photo (just press SOS button to do it)
  • RFID user info management.
  • RFID historic card record or last record.
  • Showing RFID card holding driver info together with vehicle position data.
  • IP53 protection standard

Inputs/Outputs

AL-900E has

4 inputs for:

  • ACC
  • Door sensor
  • Shock sensor
  • Fuel sensor

2 outputs for:

  • remote fuel control (with optional relay)
  • remote voltage control (with optional  relay)

Power supply

External power supply might be 9V – 40V, which makes possible to install AL-900E both on cars and vans.

AL-900E also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

AL-900E tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

AL-900E has three LEDs

  • Red LED indicates power
  • Yellow LED indicates GPS reception
  • Green LED indicates GSM/GPRS reception

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47724
Integrado19/03/2015

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso190 g (6.7 oz.)
TamañoLx80x80 mm (3.15x3.15 in), 111x68x24 mm (4.37x2.68x0.94 in)
ImpermeableIP5X

Localización GNSS

Antena externa (GNSS)
GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena externa (Conexión)
Generación de red celular2G

Interfaces

Número de salidas2
Número de entradas (todos tipos)4
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Salidas
Soportado

Características de hardware

Capacidad de batería750 mAh
Batería integrada
El botón de pánico
Soportado

Hardware extras

El botón de pánico
Soportado
Lectura del identificador del conductor
On request

Características de rastreo

Modos de rastreoContinuo

Monitoreo de eventos

Poca batería
Soportado
Dispositivo on/off
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Localización forzada de GNSS por SMS
On request

Certificacón

CE
FCC
EAC
