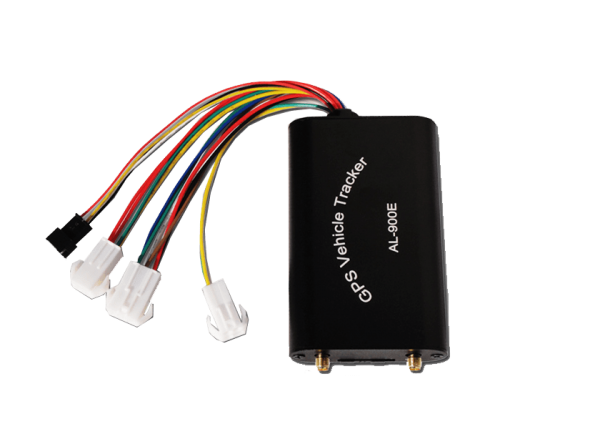

Auto Leaders AL-900E

Auto Leaders AL-900E is a cost-effective vehicle tracking device with a multiple set of functions. It is applicable for taking photos, driver RFID identification, monitoring fuel consumtion, and all standart features of a vehicle tracking device.

Show more

Package contents

Standart package include:

  • AL-900E device
  • GPS external antenna
  • GSM external antenna
  • 4-pin cable
  • 6-pin cable

As an option manufacturer offers:

  • Camera
  • LCD-display
  • Dispatch handler
  • RFID card machine
  • Fuel sensor
  • External speaker
  • External mic
  • Shock sensor
  • Door sensor
  • Engine relay

Location and tracking

AL-900E model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

AL-900E has a Quad-band GSM module, so it can be operated all over the world where 2G networks are supported.

Features

AL-900E has such special features as:

  • Showing real-time photo (just press SOS button to do it)
  • RFID user info management.
  • RFID historic card record or last record.
  • Showing RFID card holding driver info together with vehicle position data.
  • IP53 protection standard

Inputs/Outputs

AL-900E has

4 inputs for:

  • ACC
  • Door sensor
  • Shock sensor
  • Fuel sensor

2 outputs for:

  • remote fuel control (with optional relay)
  • remote voltage control (with optional  relay)

Power supply

External power supply might be 9V – 40V, which makes possible to install AL-900E both on cars and vans.

AL-900E also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

AL-900E tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

AL-900E has three LEDs

  • Red LED indicates power
  • Yellow LED indicates GPS reception
  • Green LED indicates GSM/GPRS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47724
Integrated on19/03/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight190 g (6.7 oz.)
SizeLx80x80 mm (3.15x3.15 in), 111x68x24 mm (4.37x2.68x0.94 in)
Waterproof classIP5X

GNSS Location

External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
External antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity750 mAh
Built-in batteryYes
Emergency buttonYes
Supported

Hardware extras

Emergency buttonYes
Supported
Driver ID readingYes
On request

Tracking features

Tracking modesContinuous

Events monitoring

Battery lowYes
Supported
Device switched on/offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
EACYes
