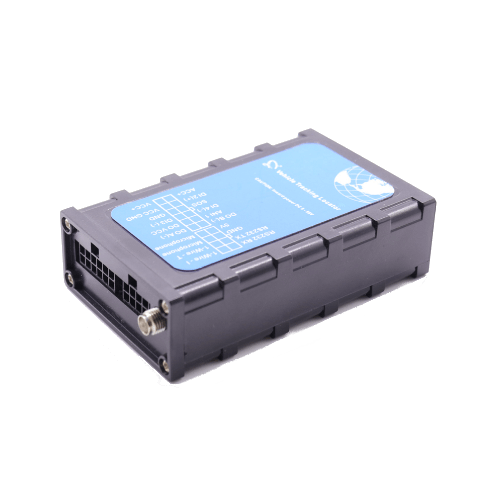

TotemTech AT05
TotemTech AT05 is a vehicle tracker designed for keeping track of vehicles (cars, trucks, motorcycles). It's notable features are: OBDII support, RFID reader, iButton reader, Fuel sensor, temperature sensors.
Mostrar más
Location and tracking
- uBlox GPS module with high accuracy
- Continuous tracking mode (no Interval mode)
- no LBS support, the location is detected using only GPS
Mobile networks
- Standard quad-band GSM 850/900/1800/1900 mHz
- Only 2G networks
Power supply
- Connects to the vehicle power circuit (12-60 V / 1.5 A)
- 300 mAh backup batter
Inputs and outputs
- 1 discrete input
- 4 digital inputs
- 2 digital outputs
Other features
- External emergency button
- Voice monitoring
- Local and remote management
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47701 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 100 g (3.53 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 5 |
| Número de salidas | 2 |
| Sensor analógico | Sí |
