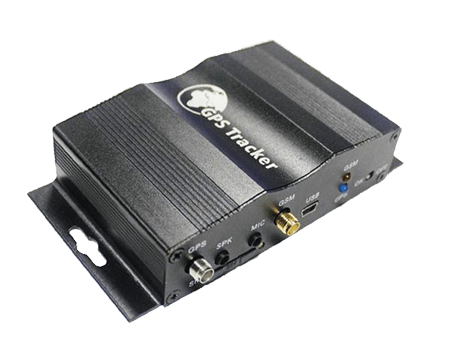

Topten TK510

Topten TK510 GPS Vehicle tracker is an advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.

Mostrar más

Features

Topten TK510 is an advanced and high-cost effective GPS tracker with ARM9 high speedy microprocessor.

It has the following functions:

  • Camera for snapping & monitoring via MMS, email or platform;
  • RFID car alarm system with long-distance tag;
  • Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.

Package content

The package contents:

  • GPS Tracker
  • GSM antenna 1pc
  • GPS antenna 1pc
  • SOS button 1pc
  • Relay 1pc
  • Wiring 1pc

Location and tracking

TK510 tracking is based on GPS signals only. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in TK510 model are

  • time/interval tracking
  • direction variation tracks
  • distance interval tracks

Also it has an option for SMSreports on time interval.

Mobile networks

With Quad-band GSM 2G module TK510 can be operated all over the world.

Power supply

External power supply might be 9-45V, which makes it possible to install TK510 both on cars and vans.

TK510 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Interfaces

TK510 provides rich opportunities for connecting external equipment, including 4 analog/digital connectors for multi fuel sensor monitoring, camera for snapping & monitoring via MMS, email or platform, RFID car alarm system with long-distance tag, crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm

More detailed information about inputs and outputs of the device can be found in “Specifications” tab.

Remote management

TK510 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also it is fully configurable via USB cable using proprietary software.

LED indication

TK510 has LED indication for GPS and GSM status.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47738

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso180 g (6.35 oz.)
Tamaño110x80x30 mm (4.33x3.15x1.18 in)

Localización GNSS

Antena externa (GNSS)
GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena externa (Conexión)
Generación de red celular2G

Interfaces

Número de salidas5
Número de entradas (todos tipos)5
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Salidas
Soportado

Características de hardware

Capacidad de batería850 mAh
Batería integrada
Soportado
El botón de pánico
Soportado
Relé del bloqueo del motor
Soportado

Hardware extras

Lectura del sensor del nivel de combustible
Soportado
El botón de pánico
Soportado

Características de rastreo

Modos de rastreoContinuo
Localización por Cell ID
Soportado

Monitoreo de eventos

Poca batería
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Control remoto de las salidasSí (por GPRS), Sí
Soportado
Tipo de IDStatic (IMEI), Static

Certificacón

CE
FCC
