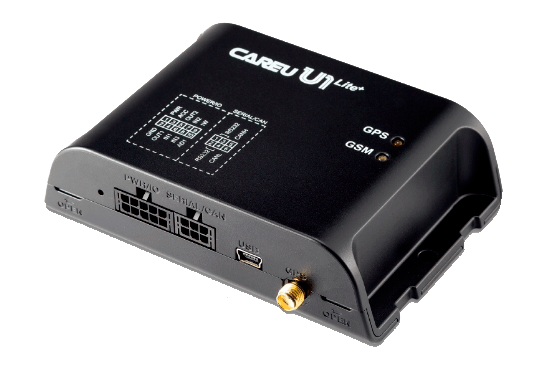

CAREU U1 Lite+

CAREU U1 Lite+ is a cost-effective and easy-to-install GPS tracking device. I features RS232 interface and 1-Wire interface temperature and i-Button driver ID function. It is an ideal solution for everyday fleet tracking management.

Mostrar más

Packaging content:

  • U1 Lite+ tracking device
  • User manual

Features:

  •  Cost effective and easy installation
  • Two-ways voice communication*
  • Data communications by UMTS/HSPA/GPRS/EDGE, SMS, FTP, USSD
  • Support GPS/ Glonass*/ BDS*/ Galileo* Satellite System
  • Built-in 3-axis or 6-axis* accelerometer
  • Support harsh acceleration/ harsh braking/Impact detection/ harsh cornering*/ Flip over detection*
  • Support 1-Wire® interface temperature function and i-Button driver ID
  • RS232 interface for rich accessories supporting, Fuel level sensor, RFID reader, Barcode, and so on.
  • Remote configuration
  • Intelligent power management
  • FOTA firmware via FTP
  • Maximum 100,000 data logs

(*) Optional

Applications:

  • Fleet tracking
  • Vehicle security/rescue/anti-hijack
  • Mobile asset tracking
  • Fleet management
  • Location based service

Specifications:

  • Communication Specification
    • Frequency 2G/GSM: Quad band, 850/900/1800/1900 MHz 3G/ UMTS/HSPA: 850/900/1900/2100 MHz
    • Data Protocol: TCP, UDP, SMS, Voice, USSD
  • GNSS Performance
    • Datum: WGS-84
    • Receiver type: 72 channels
    • Sensitivity: -160 dBm; 26s
  • Power Consumption:
  • Operating Temperature: -20℃~+70℃ (-4℉~158℉)
  • Interface:
  • Serial Ports: 1 x RS-232 Port (Configurable baud rate)
  • Input Ports: 1 x ACC/Ignition Input
    • 3 x Digital Inputs (1 x Positive trigger & 2 x Negative triggers)
    • 1 x Analog Input (12-bit resolution)
    • 1 x 1-Wire® Input
  • Output Ports: 2 x Outputs (Max. sink current 300mA)
  • Two-way voice port*

(*) Optional


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor46986
Auto registro

Información general

FinalidadVehículo

Información de ubicación

Nivel de señal GNSS

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales4
Número de salidas2
Sensor analógico
Active un dispositivo en la plataforma Probar
¿No ha encontrado su dispositivo? Podemos añadirlo Integrar
