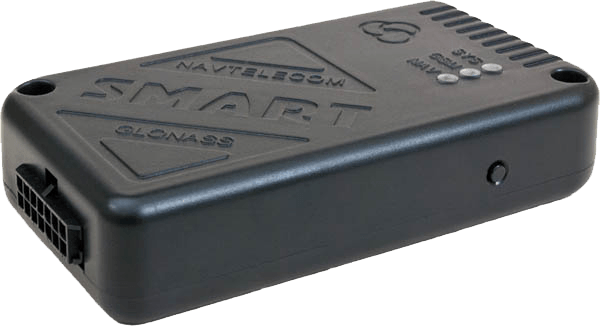

Navtelecom Smart S-2333A

Navtelecom SMART S-2333A is a simple and cost effective GPS/GLONASS monitoring solution, which has RS-485 and 1-wire inputs and supports Harsh Driving detection. The device is able to read CAN-data with the help of CAN-LOG or CANTEC adapters. S-2333A has a built-in battery and a microphone.



Mostrar más

Package contents

Package contents include:

  • Device
  • 14-pin cable (harness) type Microfit-14
  • Interface cable with a MiniUSB connector
  • CD with software and documentation
  • User manual
  • Packaging

Location and tracking

Navtelecom SMART S-2333A model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.

Mobile networks

With Quad-band GSM 2G module Navtelecom SMART S-2333A can be operated all over the world.

Power supply

External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2333A both on cars and vans.

S-2333A also features built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Local and remote management

Navtelecom SMART S-2333A can not be controlled over GPRS, the configuration should be made by using special software «NTC Configurator».

Features

Navtelecom SMART S-2333A has following features:
  • Real Time Tracking
  • Fuel level reading
  • Harsh Driving detection
  • Remote outputs control
  • The support of FLEX-protocol for traffic economy
  • 1-wire
  • RS-485 sensor
  • EGTS Protocol support
  • Internal battery

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47709
Auto registro

Información general

FinalidadVehículo

Conectividad

Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales4
Número de salidas2
Sensor analógico
Sensor de impulsos
Sensor de frecuencia
