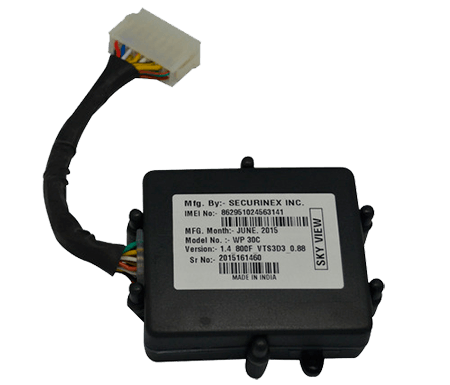

Atlanta WP-30C

Atlanta WP-30C is an ideal application for vehicle tracking. This offered tracker is designed under the vigilance of our skilled professionals in adherence with quality standards using the best quality raw materials and cutting edge technology. Apart from this, provided tracker is tested on diversified parameters so as to ensure its durability and flawlessness.

Mostrar más

Packaging content:

  • WP-30C tracking device
  • User manual

Features:

  • Excellent performance
  • Low maintenance
  • Sturdy construction

Other Details:

  • Combination of GSM/GPRS wireless network
  • Easy to install or hide in the vehicle to perform tracking
  • Ideal application for vehicle tracking and equipment / assets monitoring
  • Internal battery back up
  • Firmware update over the air
  • Real-time GSM location monitoring on SMS
  • Vehicle control with Immobilization
  • Waterproof enclosure(IP 67)
  • Inbuilt GSM & GPS antenna

Applications:

  • Tracking
  • Delivery Service
  • Hotels and Restaurant Delivery Service
  • Courier Services
  • Security and Other Services

Specifications:

  • Power Input: 12 V to 36 V
  • Normal operation temperature: -30 °C to 80 °C
  • Restricted operation temperature: -40 °C to -30 °C and 80 °C to 85 °C
  • Storage temperature: -45°C to 90°C
  • Humidity: 5% to 95%

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)
  • Baud Rate: 9600 bps

GPS Module:

  • GPS Receiver: 50 Channels
  • Frequency: L 1, 1575.42 MHz
  • Chipset: uBlox UBX G-5010
  • Accuracy: Less than 2.5 Meters, 2D RMS
  • Sensitivity: (-)160 dBm

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor46990
Auto registro

Información general

FinalidadVehículo
Peso100 g (3.53 oz.)

Conectividad

Nivel de señal
ID del operador

Información de ubicación

LBS
Localización forzada por GNSS preferente a GPRS

Características

Odómetro
Acelerómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales6
Número de salidas1
