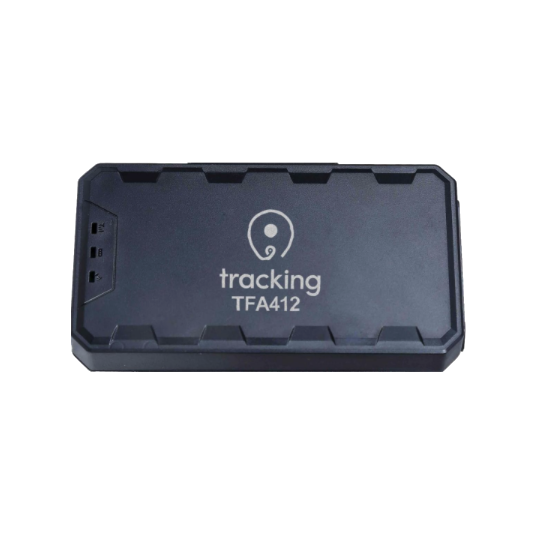

TFA412
The TFA412 is a 4G Cat NB2/Cat M1 tracking device that combines positioning monitoring and hardware events. Its small size makes it easy to use and operate, making it well-suited for vehicle and other mobile object location and tracking services. Device supports RS485 and 1-Wire interfaces for additional sensors like temperature and fuel level sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47724 |
General information
| Purpose | Vehicle |
| Weight | 79 g (2.79 oz.) |
| Size | 100x50x18 mm (3.94x1.97x0.71 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Cellular network type | Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B26/B27/B28/B66/B85, Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B28/B66/B71/B85, GSM 850/900/1800/1900 |
| Cellular network generation | Cat M1, 2G |
Location information
| GNSS signal level | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 180 mAh |
Interfaces
| Discrete inputs | 6 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| RS485 interface | Yes |
| 1-Wire interface | Yes |
