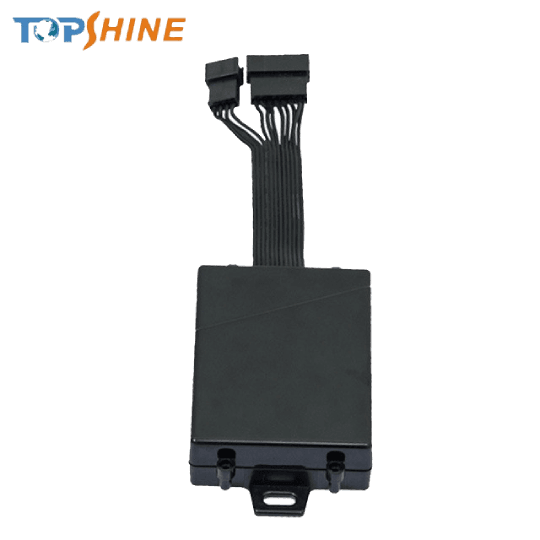

TopShine MT02-4G
Topshine MT02 4G is a compact GPS tracker providing real-time vehicle tracking and security over 2G/3G/4G networks. It offers features like multiple alerts (speeding, low battery, motion, geo-fence, ACC status), remote engine cut-off, and a data logger for areas without signal. Optional enhancements include fuel monitoring, RFID, a crash sensor, and OBD2 connectivity, making it suitable for both personal use and fleet management.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47738 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 80x58x22 mm (3.15x2.28x0.87 in) |
| Internal antenna (GNSS) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | Quad-band: (850MHz/900MHz/1800MHz/1900MHz), LTE-FDD: (B1/B2/B3/B4/B5/B7/B8/B20/B28/B66) |
| Cellular network generation | 4G:LTE-FDD |
Location information
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 500 mAh |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| 1-Wire interface | Yes |
Input Fields
State Fields
Events monitoring
