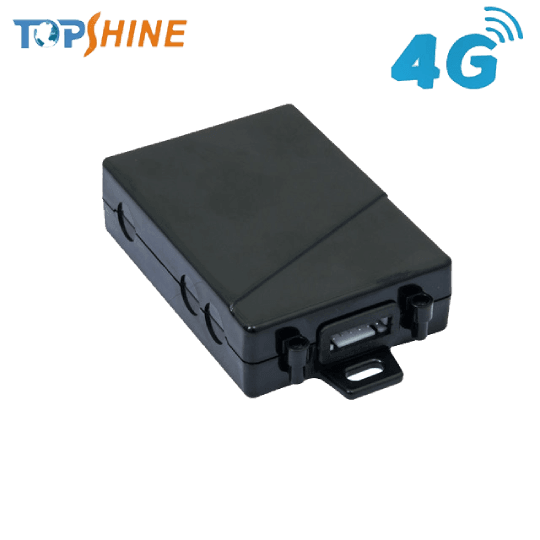

TopShine MT01-4G

Topshine MT01 4G is a compact GPS tracker designed for real-time vehicle and motorcycle tracking, utilizing 4G networks for reliable data communication. It provides essential security and monitoring capabilities, including real-time location updates, various alerts such as speeding, geo-fence breaches, and power status, along with remote engine cut-off functionality. Featuring a built-in antenna and often a waterproof design, it's built for discreet installation and supports features like engine on/off detection and power-saving modes.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47738
Auto registrationYes

General information

PurposeVehicle
Weight88 g (3.1 oz.)
Size80x58x22 mm (3.15x2.28x0.87 in)
Internal antenna (GNSS)Yes

Connectivity information

Network signal levelYes
Network operator IDYes
Cellular network typeQuad-band: (850MHz/900MHz/1800MHz/1900MHz), LTE-FDD: (B1/B2/B3/B4/B5/B7/B8/B20/B28/B66)
Cellular network generation4G:LTE-FDD

Location information

LBSYes
Forced GNSS location update over GPRSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes
Battery capacity500 mAh

Interfaces

Discrete inputs2
Number of outputs1
Analog sensorYes
1-Wire interfaceYes
