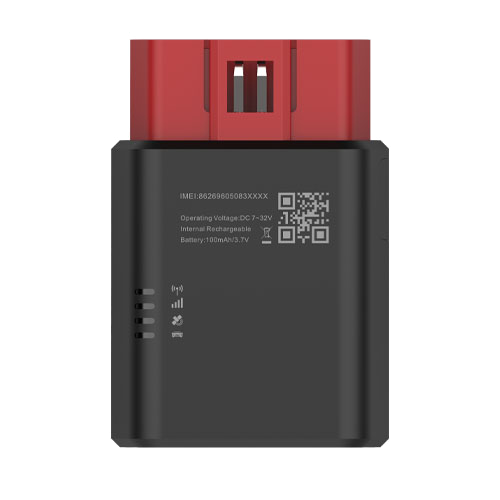

TopFlyTech TorchX 110
This advanced Plug & Play OBDII tracker with CAN BUS reading provides heavy and light duty vehicle data such as ignition, VIN, odometer, fuel level, etc. It supports BLE and WIFI positioning
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 70 g (2.47 oz.) |
| Size | 52.8x47.8x24.8 mm (2.08x1.88x0.98 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B1 9/ B20/B25/B26/B28/B66 |
| Cellular network generation | 4G, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 100 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
Input Fields
State Fields
Events monitoring
