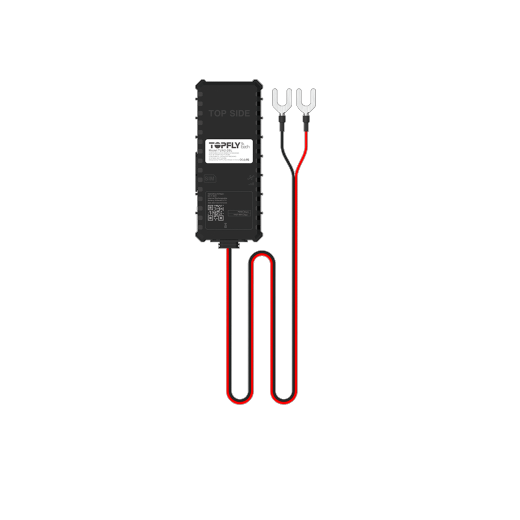

TopFlyTech TLW2-2BL
TLW2-2BL is the basic hardwired tracker for tracking powered assets and vehicles, with ignition detection and output for relay. It can also monitor the temperature, humidity, door status, etc, when working with BLE sensors. It’s a widely used model in fleet management, logistics, cold chain, etc, to increase work efficiency and save costs.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g (1.94 oz.) |
| Size | 102.5x42.5x12 mm (4.04x1.67x0.47 in) |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Cellular network generation | Cat M1, CAT NB2, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 200 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 2 |
Input Fields
State Fields
Events monitoring
