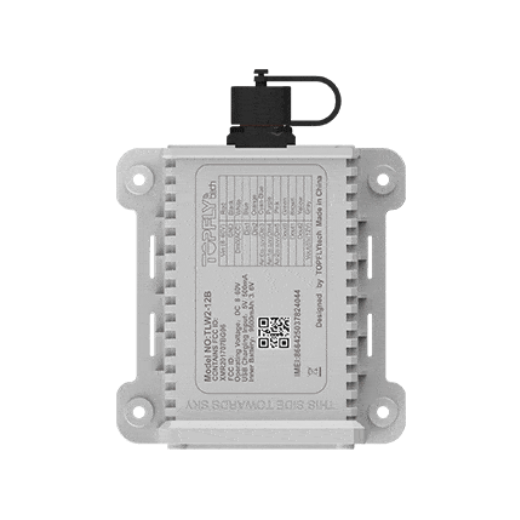

TopFlyTech TLW2-12B
TopFlyTech TLW2-12B is a device that can be powered when wired and operate on only battery when trailers standing alone (power disconnected). The multiple inputs and outputs could be used for connecting accessories.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 320 g (11.29 oz.) |
| Size | 132x100x34 mm (5.2x3.94x1.34 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | 4G, Cat M1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 9600 mAh |
Interfaces
| Discrete inputs | 6 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
