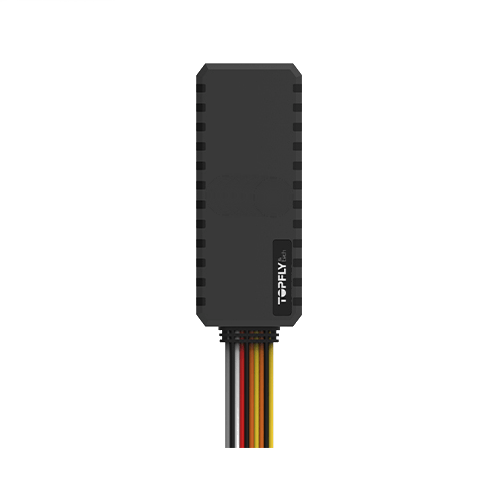

TopFlyTech TLW1-8
TLW1-8 hardwired trackers are usually used for tracking powered assets and vehicles. It has more inputs in addition to the basic model TLW1-4, for the SOS button, analog fuel sensors, or your own accessories. It also has ignition detection and output for relay/buzzer/siren. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s a model you go with when you have more complex needs in fleet management, logistics, cold chain, etc.
Show more
Location and tracking
- GPS, GLONASS
- Continuous and interval tracking modes
- LBS
Mobile networks
- 900/1800MHz
- 4G
Power supply
- 7 – 32V DC
- Li-Polymer 200 mAh/ 3.7V internal battery
Inputs and outputs
- 2 Universal inputs
- RS232 interface
- 1 Digital outputs
Other features
- Emergency button
- Remote management
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 48 g (1.69 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 2 |
| Analog sensor | Yes |
