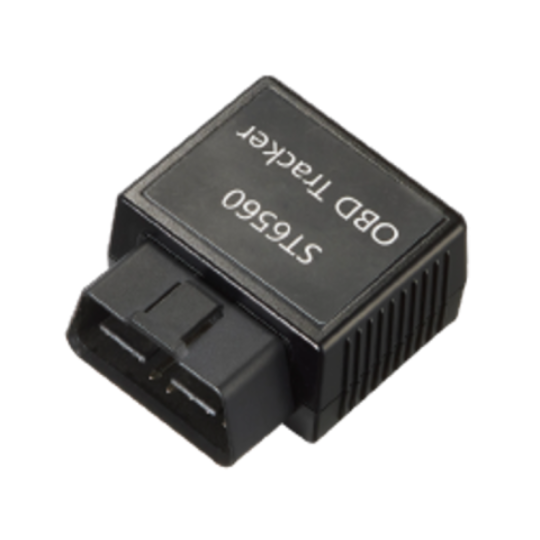

Suntech ST6560
Suntech ST6560 is a Cat M1/NB-IoT vehicle Plug and Play device with compact case. Device has 3-axis accelerometer for harsh driving and chip that can read the J1850 and ISO 9141-2/14230 K-Line protocols. ST6560 also support BLE 5.3 for wireless sensors connectivity.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g (1.94 oz.) |
| Size | 50x59x25 mm (1.97x2.32x0.98 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE Cat M1/ NB2-IoT: B2/B4/B5/B66, GSM 850/1800/1900 |
| Cellular network generation | Cat M1, CAT NB-IoT, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 90 mAh |
Interfaces
| Discrete inputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
