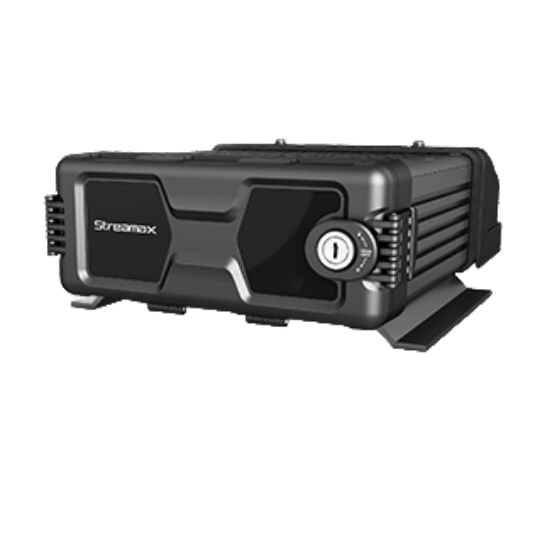

Streamax X5N-E0804
X5N-E0804 is an 8-channel 4G MDVR supporting up to 8×AHD 1080p cameras. It features H.265 compression, GPS tracking, dual storage (2.5" SSD/HDD + SD card), and multiple I/O for sensor integration. Supports ADAS/DMS, CAN, RS-232 (RS-485 optional), and external GNSS/LTE antennas via SMA. Wi-Fi optional. Designed for heavy-duty fleet vehicles requiring full video coverage and remote monitoring.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47637 |
General information
| Purpose | Vehicle |
| Weight | 1500 g (52.91 oz.) |
| Size | 230x180x65 mm (9.06x7.09x2.56 in) |
| Waterproof class | IP56 |
| External antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Cellular network type | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28/B66/B71, LTE TDD: B40, WCDMA: B1/B2/B4/B5/B8, GSM: B2/B3/B5/B8 |
| Cellular network generation | 3G, LTE Cat 4, 2G |
| WiFi | Yes |
Location information
| GNSS signal level | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 3000 mAh |
Interfaces
| Discrete inputs | 8 |
| RS485 interface | LTE TDD: B40, Yes |
| 1-Wire interface | Yes (Optional) |
| CAN/OBDII reader type | Yes |
