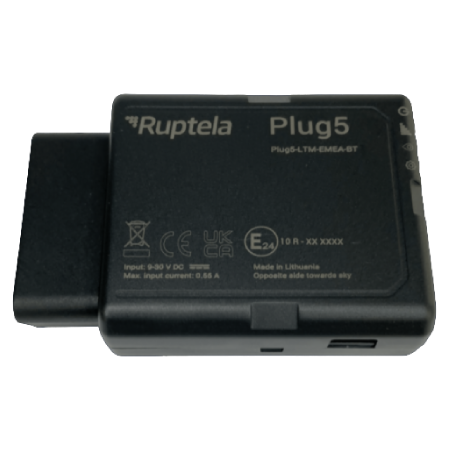

Ruptela Plug5
Ruptela Plug5 is designed for precise vehicle tracking and can perform advanced tasks – read OBD2 and CAN data, monitor driver behavior, detect and reconstruct accidents, reduce maintenance costs, etc. Additionally, using a harness makes it possible to read data from different types of vehicles.
Show more
Ruptela Plug5 is designed for precise vehicle tracking and can perform advanced tasks – read OBD2 and CAN data, monitor driver behavior, detect and reconstruct accidents, reduce maintenance costs, etc. Additionally, using a harness makes it possible to read data from different types of vehicles.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47747 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 65 g (2.29 oz.) |
| Size | 75x51x27 mm (2.95x2.01x1.06 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | 4G CAT-M1 B1/B3/B5/B8/B18/B19/B20/B28, 2G: 850/1800/1900MHz |
| Cellular network generation | Cat M1, 2G |
| WiFi | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 1 |
| Frequency sensor | Yes |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
