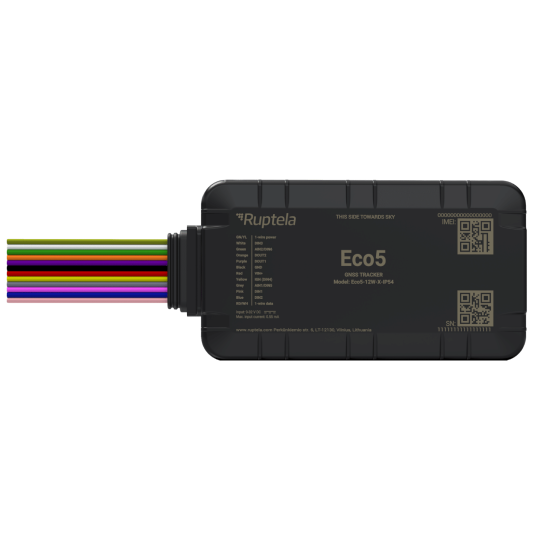

Ruptela Eco5
Ruptela Eco5 is a compact and universal GNSS-based vehicle tracker designed for fleet management. It offers 4G and 2G connectivity. Additionally, an IP54 and IP68 versions of the device with a rugged housing provide complete protection against water, dirt, and mechanical factors. Eco5 has a jamming detection alert for additional security. Various interfaces such as discrete inputs, universal analog/discrete inputs and 1-wire interface along with 2 digital outputs can be used in a combination with external gear for advanced telematics monitoring.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47747 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 90 g (3.17 oz.) |
| Size | 95x51x14 mm (3.74x2.01x0.55 in) |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE Cat 1: B1/B3/B5/B7/B8/B20/B28, LTE Cat 1: B2/B3/B4/B5/B7/B8/B28/B66, LTE Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85, LTE Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85, GSM 850/900/1800/1900 |
| Cellular network generation | Cat M1, CAT NB2, LTE Cat 1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 180 mAh |
Interfaces
| Discrete inputs | 7 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Frequency sensor | Yes |
| 1-Wire interface | Yes |
Input Fields
State Fields
Events monitoring
