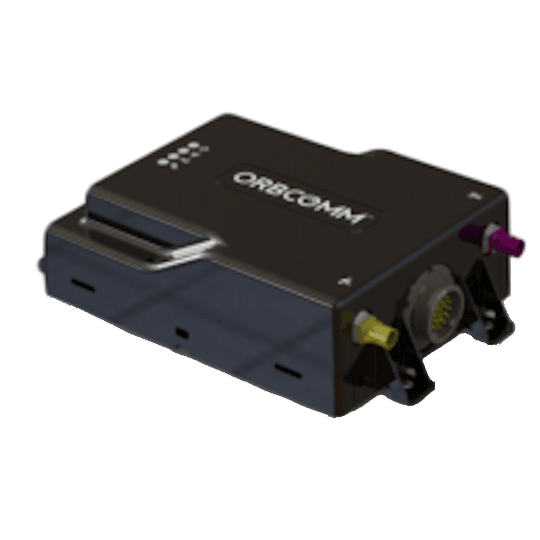

ORBCOMM ST9101
Orbcomm ST9101 is a dual-mode satellite-cellular GPS terminal with global Cat 1 connectivity for diverse IoT applications. It’s a programmable hardware for remote monitoring of fixed and portable assets. ST9101 has various interfaces such as 4 configurable inputs/outputs, 2 dedicated outputs, 4 digital/analog inputs, 2 RS-232 and 1 RS-485 interfaces. 1 Wire and 2 CAN bus interfaces expands the device capabilities even more.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
General information
| Purpose | Vehicle |
| Size | 148x113x47 mm (5.83x4.45x1.85 in) |
| Waterproof class | IP67 |
| External antenna (GNSS) | Yes |
| External antenna (Connection) | Yes |
Connectivity information
| Cellular network type | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B38, B39, B40, B41 |
| Cellular network generation | LTE Cat 1, 2G |
Location information
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 2000 mAh |
Interfaces
| Discrete inputs | 8 |
| Number of outputs | 6 |
| Analog sensor | Yes |
| RS485 interface | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | External |
Input Fields
State Fields
Events monitoring
