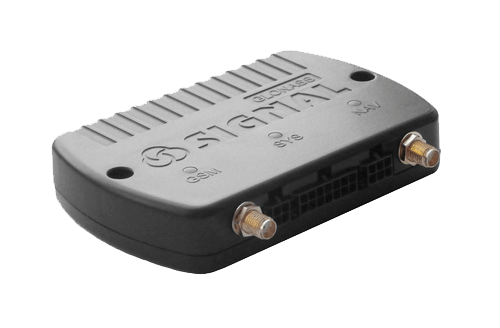

Navtelecom Signal S-2552
Navtelecom SIGNAL S-2552 is a GPS/GLONASS monitoring unit, which has a CAN-interface with J1939 support. S-2552 has a built-in battery and also supports two SIM-cards, and microSD memory card up to 32 GB. It also supports 3G-networks.
It is the most advanced unit in the Navtelecom Signal devices line.
Package contents
Package contents include:
- Device
- GPS/GLONASS Antenna
- GSM Antenna
- Fuse – 1 A
- Fuse holder
- 14-pin cable (harness) type Microfit-14
- 6-pin cable (harness) type Microfit-6
- 4-pin cable (harness) type Microfit-4
- Interface cable with a MiniUSB connector
- CD with software and documentation
- Packaging
Location and tracking
Navtelecom SIGNAL S-2552 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.
Mobile networks
With Quad-band GSM 3G module Navtelecom SIGNAL S-2552 can be operated all over the world.
Power supply
External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2552 both on cars and vans.
S-2552 also features built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).
Local and remote management
Navtelecom SIGNAL S-2552 can not be controlled over GPRS, the configuration should be made by using special software “NTC Configurator”.
Features
- Real Time Tracking
- Fuel monitoring
- Remote outputs control
- Camera
- CAN-data reading
- Two-way hands-free communication
- Two SIM-cards support
- microSD cards support
- The support of FLEX-protocol for traffic economy
- EGTS Protocol support
- Remote ddd-files extraction
- Driver display
- LBS-location
- Internal battery
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47709 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 100 g (3.53 oz.) |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 6 |
| Number of outputs | 4 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
