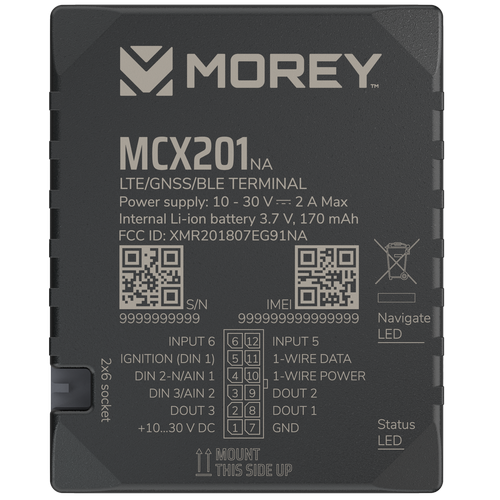

Morey MCX201
Morey MCX201 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.
Show more
Location and tracking
- GPS, GLONASS
- Continuous
- LBS
Mobile networks
- 2G / 3G/4G
Power supply
- Build-in battery 170 mAh Li-Ion, 3.7 V
- External power supply 10 – 30 V DC with overvoltage protection
Inputs and outputs
- 3 digirtal inputs
- 1 negative input
- 2 impulse inputs
- 2 analog inputs
- 1 CAN adapter input
- 1-Wire
- 3 digital outputs
Other features
- Local and remote management
- LED indication
- Accelerometer
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g (1.94 oz.) |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
Input Fields
State Fields
Events monitoring
