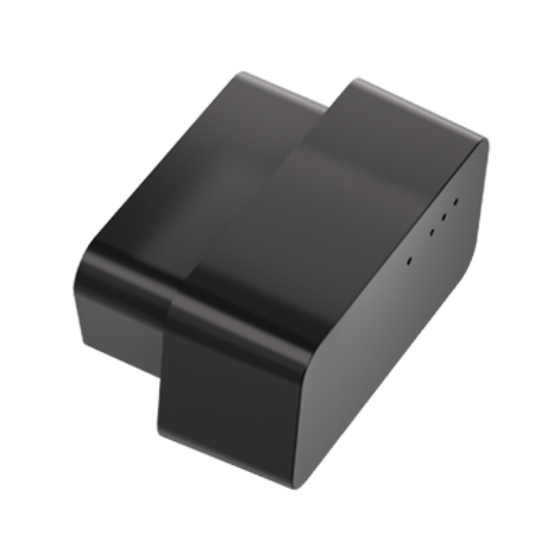

Jimi JM-VL505
Jimi VL505 is a 4G LTE OBD GPS tracker designed for easy plug-and-play installation and advanced vehicle monitoring. It connects directly to the vehicle’s OBD-II port, enabling real-time tracking, driving behavior analysis, and remote diagnostics without complex wiring. The device includes RS232, RS485, and 1-Wire interfaces for external sensors such as RFID readers or fuel probes. It features engine cut-off control, SOS alerts, and over-the-air firmware updates (FOTA).
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 26 g (0.92 oz.) |
| Size | 45x30x23 mm (1.77x1.18x0.91 in) |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-TDD: B34 B38 B39 B40 B41, LTE-FDD: B1 B2 B3 B4 B5 B7 B8 B12 B14 B17 B20 B25 B26 B28 B66 |
| Cellular network generation | LTE Cat 1 |
| WiFi | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 450 mAh |
Interfaces
| Discrete inputs | 2 |
| RS485 interface | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Yes |
Input Fields
State Fields
Events monitoring
